Manufacturer Part Number: | 142-0771-821 |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 14093 Pieces |
Unit Price: | Quote by Email |

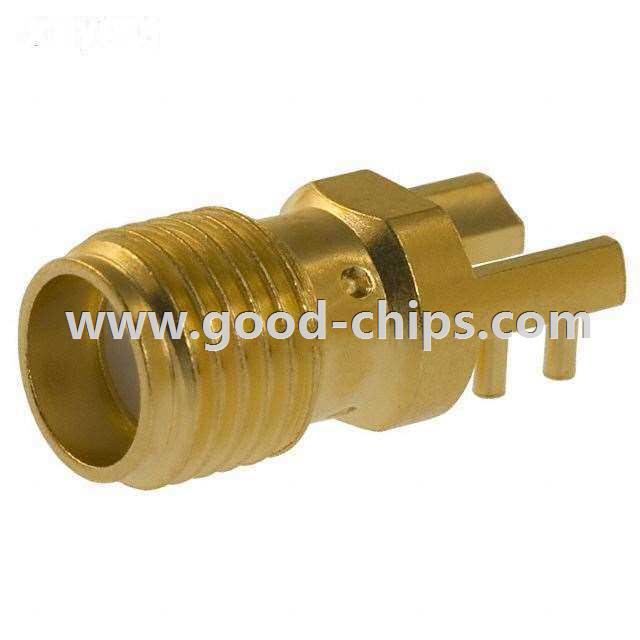

Description: | SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch; Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 142-0771-821 Datasheet |
Internal Part Number | 898-142-0771-821 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SMA HF End Launch | |
Featured Product | High Frequency SMA End Launch Connectors SMA Connectors Connectivity Solutions | |
Online Catalog | SMA | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Cinch Connectivity Solutions Johnson | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | SMA | |
Connector Type | Jack, Female Socket | |
Contact Termination | Solder | |
Shield Termination | Solder | |
Impedance | 50 Ohm | |
Mounting Type | Board Edge, End Launch; Through Hole, Right Angle | |
Cable Group | - | |
Fastening Type | Threaded | |
Frequency - Max | 26.5GHz | |
Features | - | |
Housing Color | Gold | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Gold | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | 170V | |
Operating Temperature | -65°C ~ 165°C | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 142-0771-821 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
142-0771-821 is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of 142-0771-821 is new and unused, you can buy 142-0771-821 Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 142-0771-821.
