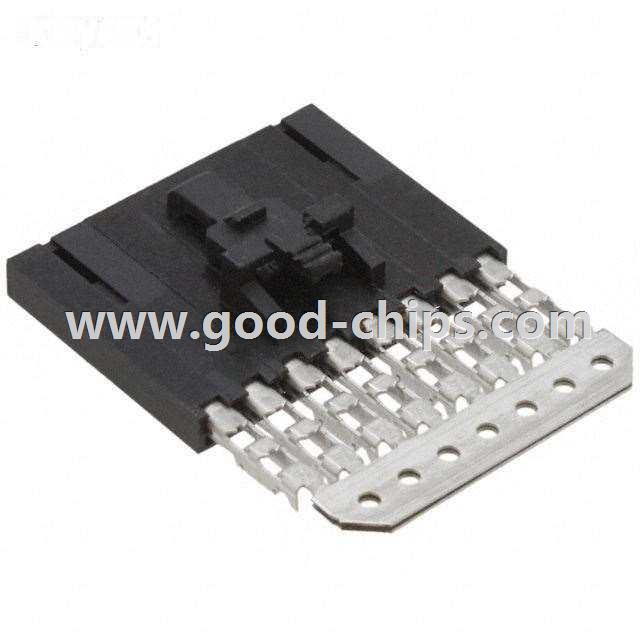

| Manufacturer Part Number: | 14-56-2082 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 9244 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Position Rectangular Receptacle Connector IDC Gold 24 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 14-56-2082 Datasheet |
| Internal Part Number | 898-14-56-2082 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SL Family Roadmap | |
| Video File | Molex - Product Spotlight - SL™ Modular Connectors Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 14-56-2082 Cert of Compliance | |
| 3D Model | 14-56-2082.stp | |
| Online Catalog | SL™ 70400 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | Molex Connector Corporation | |
| Series | SL™ 70400 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 8 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | Latch Lock | |
| Cable Termination | IDC | |
| Wire Type | Discrete or Ribbon Cable | |
| Wire Gauge | 24 AWG | |
| Features | Closed End | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 14-56-2082 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
14-56-2082 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 14-56-2082 is new and unused, you can buy 14-56-2082 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 14-56-2082.
