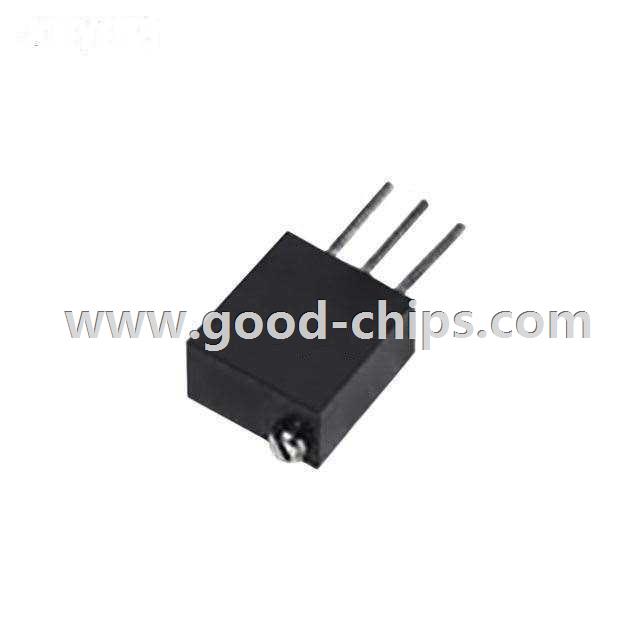

1309W102

1309W102
Manufacturer Part Number:1309W102
Manufacturer:
Product Category:Trimmer Potentiometers
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:1k Ohm 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Wirewound 19 Turn Top Adjustment
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1309W102 Datasheet
1309W102´s Parameters
Internal Part Number898-1309W102
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryPotentiometers, Variable Resistors
FamilyTrimmer Potentiometers
ManufacturerCopal Electronics Inc.
Series1309
PackagingTube
Part StatusObsolete
Resistance (Ohms)1k
Power (Watts)0.5W, 1/2W
Tolerance±10%
Temperature Coefficient±50ppm/°C
Number of Turns19
Adjustment TypeTop Adjustment
Resistive MaterialWirewound
Mounting TypeThrough Hole
Termination StylePC Pins
Size / DimensionRectangular - 0.382" x 0.217" Face x 0.413" H (9.70mm x 5.50mm x 10.50mm)
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement Part1309W102
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1309W102 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of 1309W102 is new and unused, you can buy 1309W102 Copal Electronics Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1309W102.
