| Manufacturer Part Number: | 1301470018 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

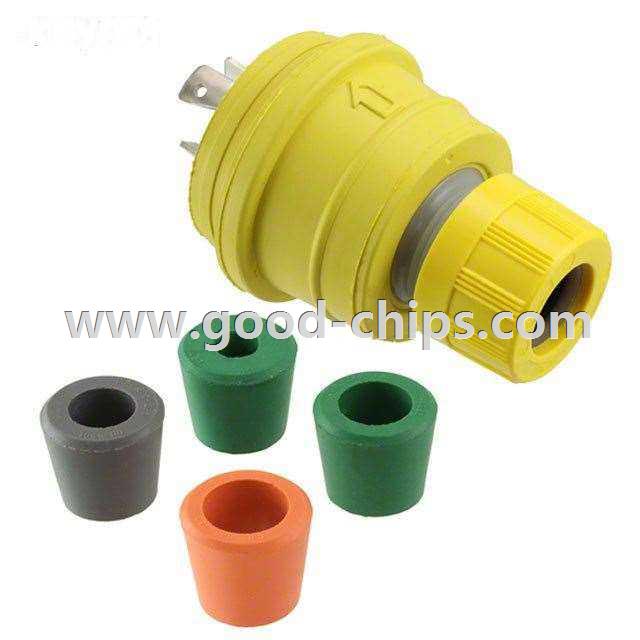

| Description: | Power Entry Connector Plug, Male Blades NEMA L5-20 Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1301470018 Datasheet |
| Internal Part Number | 898-1301470018 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Product Spotlight - Watertite® Wiring Solutions Molex RF Connectors | Digi-Key Daily | |
| Online Catalog | Watertite® 130146 and 130147 Series | |
| Category | Connectors, Interconnects | |
| Family | Power Entry Connectors - Inlets, Outlets, Modules | |
| Manufacturer | Molex Connector Corporation | |
| Series | Watertite® 130147 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | NEMA L5-20 | |
| Connector Type | Plug, Male Blades | |
| Current - IEC | - | |
| Voltage - IEC | - | |
| Current - UL | 20A | |
| Voltage - UL | 125VAC | |
| Filter Type | Unfiltered - Commercial | |
| Fuse | No | |
| Number of Positions | 3 | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Screw | |
| Switch Features | - | |
| Features | Cord Grip, Locking Blade, Strain Relief | |
| Fuse Holder, Drawer | - | |
| Panel Cutout Dimensions | - | |
| Panel Thickness | - | |
| Material Flammability Rating | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Approvals | CSA, UL | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1301470018 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1301470018 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1301470018 is new and unused, you can buy 1301470018 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1301470018.
