| Manufacturer Part Number: | 13-000021 |
|---|---|
| Manufacturer: | Conec |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

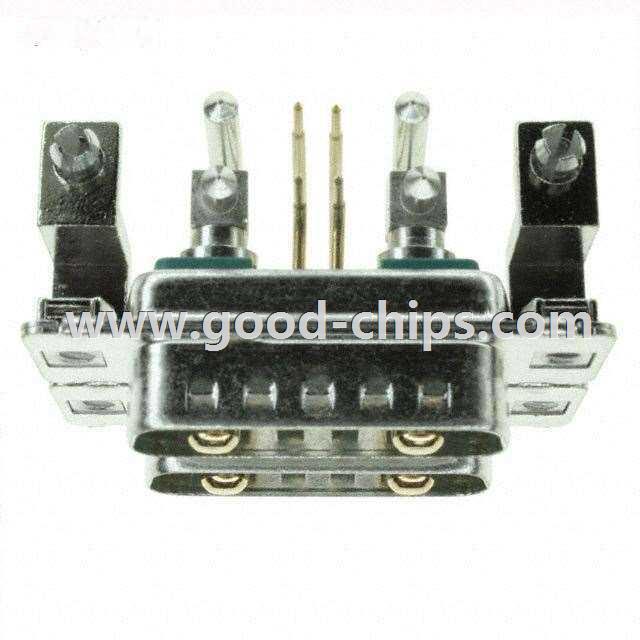

| Description: | 7 (5 + 2 Power) x 2 Position D-Sub, Combo - Stacked Plug, Male Pins Connector, Board Edge, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 13-000021 Datasheet |
| Internal Part Number | 898-13-000021 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Reach Cert of Compliance | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Conec | |
| Series | MicroTCA™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo - Stacked | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 7 (5 + 2 Power) x 2 | |
| Number of Rows | 2, 2 | |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2; 2 (DA, A) - 7W2 | |
| Contact Type | Signal and Power | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Grounding Indents, Mounting Brackets | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | IP20 | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Current Rating | 24A, 7.5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Green | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 13-000021 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
13-000021 is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 13-000021 is new and unused, you can buy 13-000021 Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 13-000021.
