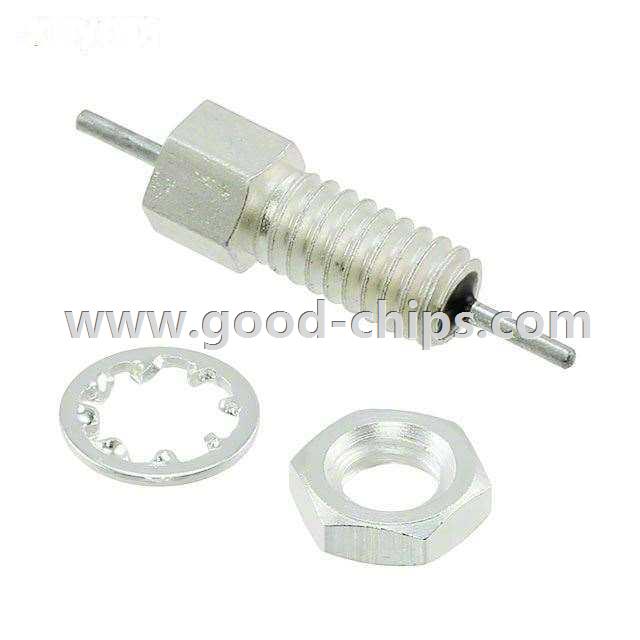

| Manufacturer Part Number: | 1293F-001 |
|---|---|
| Manufacturer: | API Technologies Corp |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9071 Pieces |
| Unit Price: | Quote by Email |
| Description: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 0.06µF 10A Axial, Bushing |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1293F-001 Datasheet |
| Internal Part Number | 898-1293F-001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EMI Filter | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | API Technologies Corp | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 3rd | |
| Technology | LC (Pi) | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | 75dB @ 100MHz ~ 1GHz | |
| Resistance - Channel (Ohms) | 0.01 | |
| Current | 10A | |
| Values | C = 0.06µF | |
| ESD Protection | No | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | General Purpose | |
| Voltage - Rated | 70V | |
| Mounting Type | Chassis Mount | |
| Package / Case | Axial, Bushing | |
| Size / Dimension | 0.187" Dia x 0.470" L (4.75mm x 11.94mm) | |
| Height | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1293F-001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1293F-001 is in stock for immediate shipping now. We are the distributor of API Technologies Corp all series components. The condition of 1293F-001 is new and unused, you can buy 1293F-001 API Technologies Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1293F-001.
