Manufacturer Part Number: | 127900-HMC765LP6CE |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

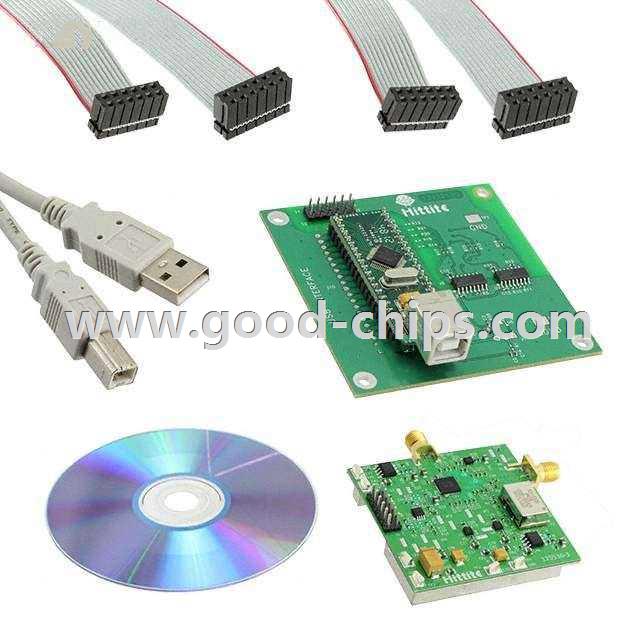

Description: | HMC765LP6CE - Timing, PLL Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 127900-HMC765LP6CE Datasheet |
Internal Part Number | 898-127900-HMC765LP6CE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | PLL Frequency Planning for Spurious Signal Elimination | |
Design Resources | Development Tool Selector | |
Online Catalog | HMC765LP6CE Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Active | |
Main Purpose | Timing, PLL | |
Embedded | - | |
Utilized IC / Part | HMC765LP6CE | |
Primary Attributes | Single Fractional-N PLL with VCO | |
Secondary Attributes | - | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 127900-HMC765LP6CE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
127900-HMC765LP6CE is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of 127900-HMC765LP6CE is new and unused, you can buy 127900-HMC765LP6CE Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 127900-HMC765LP6CE.
