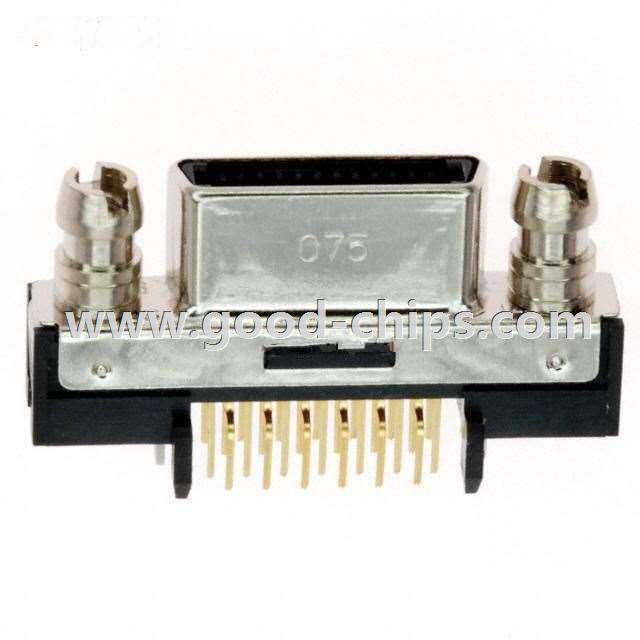

| Manufacturer Part Number: | 12226-1150-00FR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | D-Shaped Connectors - Centronics |
| Available Quantity: | 9704 Pieces |
| Unit Price: | Quote by Email |
| Description: | 26 Position Receptacle Connector Panel Mount, Through Hole Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 12226-1150-00FR Datasheet |
| Internal Part Number | 898-12226-1150-00FR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | SDR Systems | |
| 3D Model | 12226-1150-00FR.igs 12226-1150-00FR.x_t 12226-1150-00FR.stp | |
| Online Catalog | 122, Shrunk D Ribbon (SDR) Series | |
| Category | Connectors, Interconnects | |
| Family | D-Shaped Connectors - Centronics | |
| Manufacturer | 3M | |
| Series | 122, Shrunk D Ribbon (SDR) | |
| Part Status | Active | |
| Connector Style | Outer Shroud Contacts | |
| Connector Type | Receptacle | |
| Number of Positions | 26 | |
| Number of Rows | 2 | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination | Solder | |
| Flange Feature | Mating Side (M2) | |
| Type | - | |
| Features | Board Lock, Shielded | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 12226-1150-00FR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
12226-1150-00FR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 12226-1150-00FR is new and unused, you can buy 12226-1150-00FR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 12226-1150-00FR.
