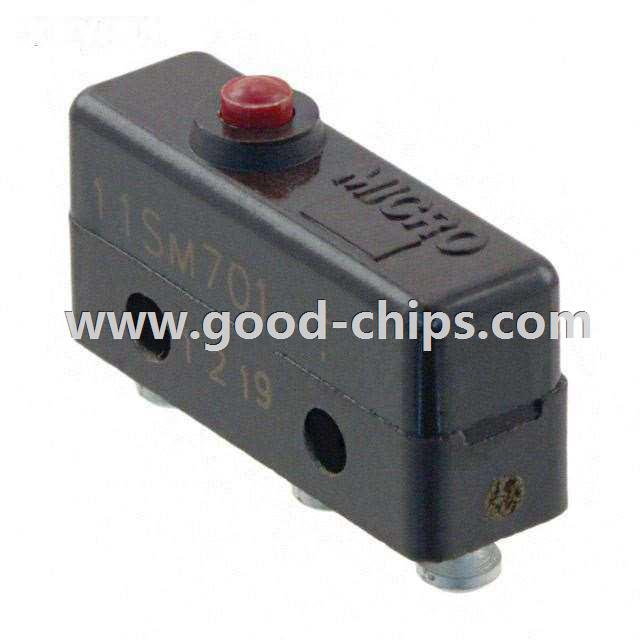

| Manufacturer Part Number: | 11SM701-T |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9109 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 4A 250V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 11SM701-T Datasheet |
| Internal Part Number | 898-11SM701-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Online Catalog | MICRO SWITCH™ SM Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | SM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 4A (AC), 5A (DC) | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Turret | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 56gf | |
| Release Force | 14gf | |
| Pretravel | 0.020" (0.5mm) | |
| Differential Travel | 0.002" (0.05mm) | |
| Overtravel | 0.005" (0.13mm) | |
| Operating Position | 0.330" (8.4mm) | |
| Mechanical Life | 10,000,000 Cycles | |
| Electrical Life | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 11SM701-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
11SM701-T is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 11SM701-T is new and unused, you can buy 11SM701-T Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 11SM701-T.
