Manufacturer Part Number: | 117-93-640-41-005000 |
---|---|
Manufacturer: | Mill-Max Manufacturing Corp. |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

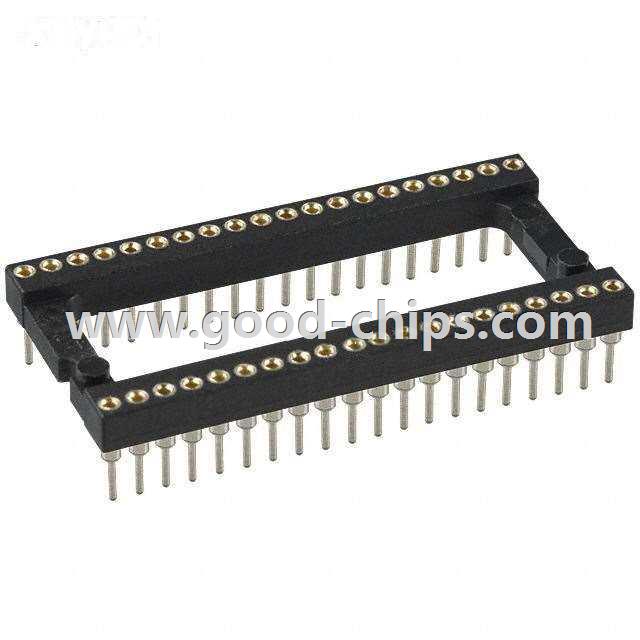

Description: | CONN IC DIP SOCKET 40POS GOLD |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 117-93-640-41-005000 Datasheet |
Internal Part Number | 898-117-93-640-41-005000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | Mill-Max Manufacturing Corp. | |
Series | 117 | |
Packaging | Tube | |
Part Status | Active | |
Type | DIP, 0.6" (15.24mm) Row Spacing | |
Number of Positions or Pins (Grid) | 40 (2 x 20) | |
Pitch - Mating | 0.070" (1.78mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 30µin (0.76µm) | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Through Hole | |
Features | Open Frame | |
Termination | Solder | |
Pitch - Post | 0.070" (1.78mm) | |
Contact Finish - Post | Tin-Lead | |
Contact Finish Thickness - Post | 200µin (5.08µm) | |
Contact Material - Post | Brass Alloy | |
Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | |
Operating Temperature | -55°C ~ 125°C | |
Termination Post Length | 0.125" (3.18mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 3A | |
Contact Resistance | - | |
Standard Package | 14 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 117-93-640-41-005000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
117-93-640-41-005000 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 117-93-640-41-005000 is new and unused, you can buy 117-93-640-41-005000 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 117-93-640-41-005000.
