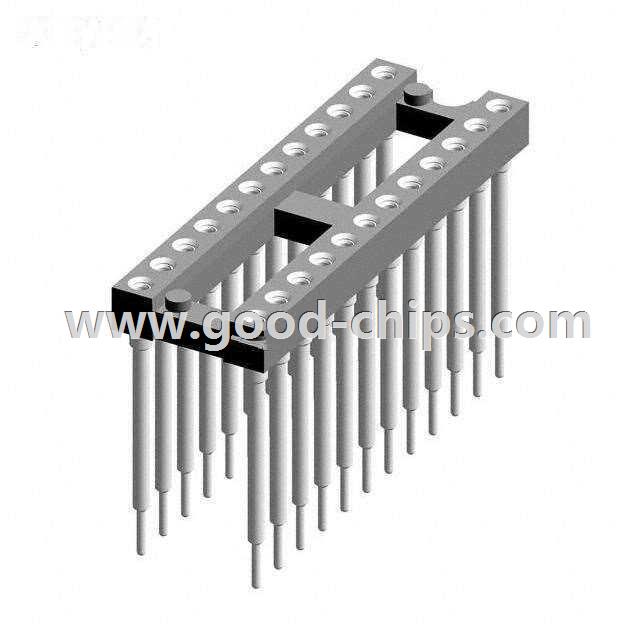

Manufacturer Part Number: | 116-83-324-41-001101 |
---|---|
Manufacturer: | Preci-Dip |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN IC DIP SOCKET 24POS GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 116-83-324-41-001101 Datasheet |
Internal Part Number | 898-116-83-324-41-001101 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Declaration | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | Preci-Dip | |
Series | 116 | |
Packaging | Tube | |
Part Status | Active | |
Type | DIP, 0.3" (7.62mm) Row Spacing | |
Number of Positions or Pins (Grid) | 24 (2 x 12) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 29.5µin (0.75µm) | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Through Hole | |
Features | Elevated, Open Frame | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | - | |
Contact Material - Post | Brass | |
Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | |
Operating Temperature | -55°C ~ 125°C | |
Termination Post Length | 0.125" (3.18mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | 10 mOhm | |
Standard Package | 170 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 116-83-324-41-001101 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
116-83-324-41-001101 is in stock for immediate shipping now. We are the distributor of Preci-Dip all series components. The condition of 116-83-324-41-001101 is new and unused, you can buy 116-83-324-41-001101 Preci-Dip with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 116-83-324-41-001101.
