| Manufacturer Part Number: | 11513 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 9140 Pieces |
| Unit Price: | Quote by Email |

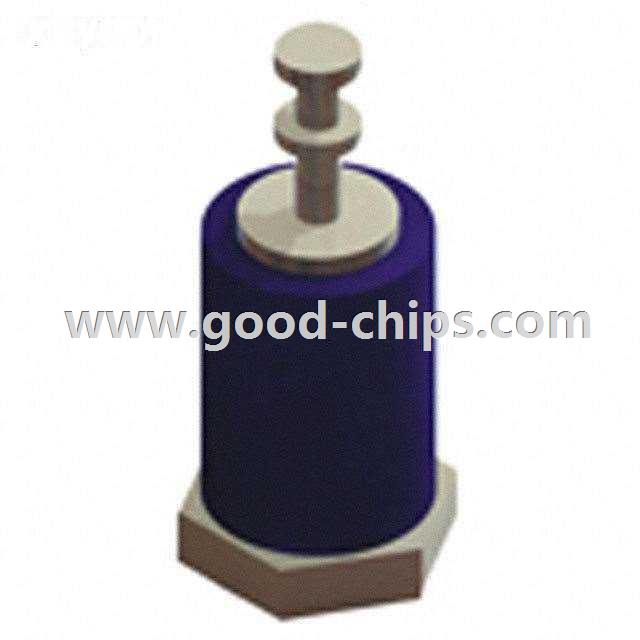

| Description: | Terminal Turret Connector Single End 0.938" (23.83mm) Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 11513 Datasheet |
| Internal Part Number | 898-11513 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance Statement | |
| Online Catalog | Turret Terminals - Keystone Electronics | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Part Status | Active | |
| Terminal Type | Single End | |
| Number of Turrets | Double | |
| Length - Above Board | 0.938" (23.83mm) | |
| Length - Below Flange | - | |
| Length - Overall | 0.938" (23.83mm) | |
| Mounting Type | Panel Mount | |
| Termination | Threaded | |
| Flange Diameter | 0.250" (6.35mm) Hex | |
| Diameter - Turret Head | 0.140" (3.56mm) | |
| Staking Side OD | - | |
| Staking Side ID | - | |
| Mounting Hole Diameter | - | |
| Board Thickness | - | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Insulated | |
| Material - Insulation | Diallyl Phthalate (DAP) | |
| Insulation Color | Blue | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 11513 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
11513 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 11513 is new and unused, you can buy 11513 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 11513.
