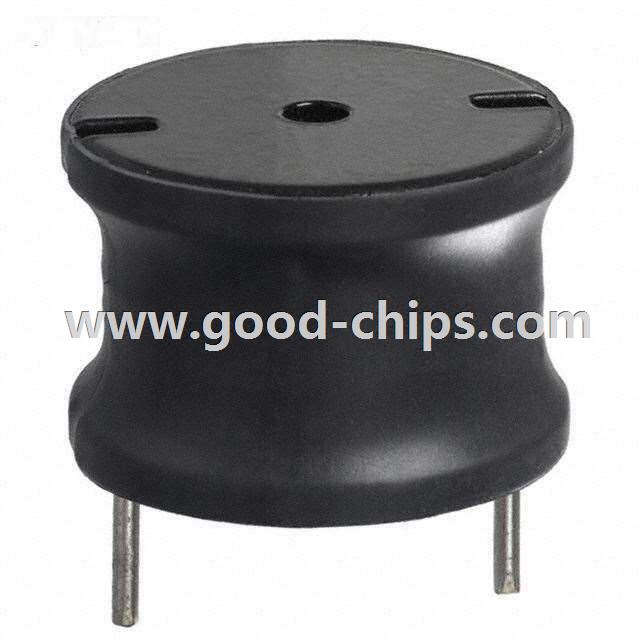

1140-680K

1140-680K
Manufacturer Part Number:1140-680K
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:68µH Unshielded Wirewound Inductor 14.4A 21 mOhm Max Radial
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1140-680K Datasheet
1140-680K´s Parameters
Internal Part Number898-1140-680K
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerBourns Inc.
Series1140
PackagingBulk
Part StatusObsolete
TypeWirewound
Material - CoreFerrite
Inductance68µH
Tolerance±10%
Current Rating14.4A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)21 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension1.500" Dia (38.10mm)
Height - Seated (Max)1.030" (26.16mm)
Standard Package 24
Weight0.001 KG
ApplicationEmail for details
Replacement Part1140-680K
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1140-680K is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 1140-680K is new and unused, you can buy 1140-680K Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1140-680K.
