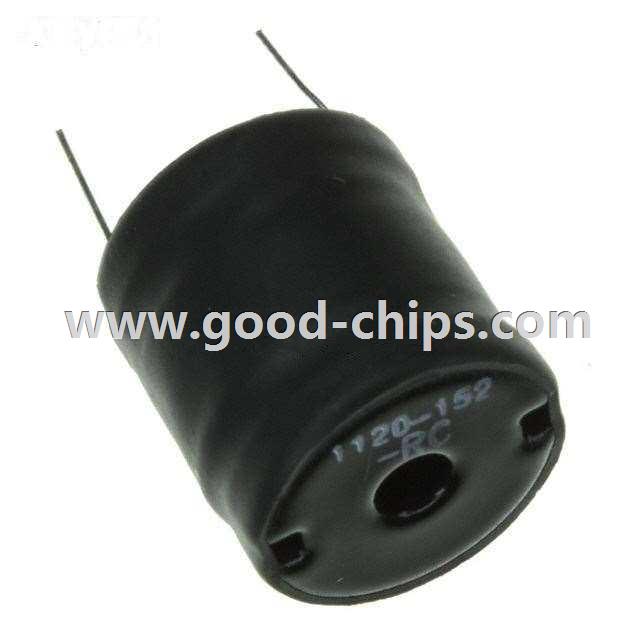

| Manufacturer Part Number: | 1120-152K-RC |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9198 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.5mH Unshielded Wirewound Inductor 800mA 1.26 Ohm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1120-152K-RC Datasheet |
| Internal Part Number | 898-1120-152K-RC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| 3D Model | 1120-152K-RC.stp | |
| PCN Design/Specification | 1120 Series Multiple Changes May/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 1110, 1120, 1130 and 1140 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | 1120 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 1.5mH | |
| Tolerance | ±10% | |
| Current Rating | 800mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.26 Ohm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Frequency - Test | 1kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.810" Dia (20.57mm) | |
| Height - Seated (Max) | 0.840" (21.34mm) | |
| Standard Package | 88 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1120-152K-RC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1120-152K-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 1120-152K-RC is new and unused, you can buy 1120-152K-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1120-152K-RC.
