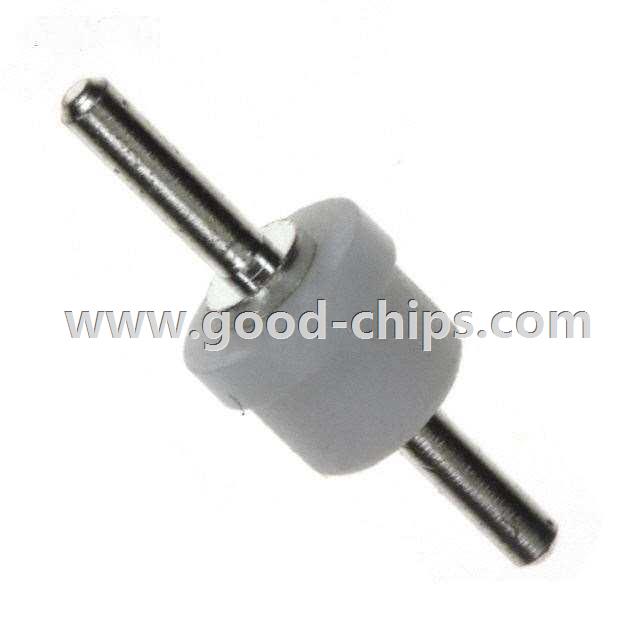

| Manufacturer Part Number: | 11155 |
|---|---|
| Manufacturer: | Keystone Electronics |
| Product Category: | Terminals - PC Pin, Single Post Connectors |
| Available Quantity: | 9353 Pieces |
| Unit Price: | Quote by Email |
| Description: | PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 11155 Datasheet |
| Internal Part Number | 898-11155 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance Statement | |
| Online Catalog | PTFE Terminals and Pins | |
| Category | Connectors, Interconnects | |
| Family | Terminals - PC Pin, Single Post Connectors | |
| Manufacturer | Keystone Electronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | PC Pin | |
| Terminal Style | Double End | |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | |
| Pin Size - Below Flange | 0.040" (1.02mm) Dia | |
| Length Above Flange | 0.210" (5.33mm) | |
| Length Below Flange | 0.265" (6.73mm) | |
| Length - Overall | 0.515" (13.08mm) | |
| Flange Diameter | 0.172" (4.37mm) | |
| Mounting Hole Diameter | 0.136" (3.45mm) | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Insulation | Insulated | |
| Board Thickness | 0.062" (1.57mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | |
| Insulation Color | White | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 11155 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
11155 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 11155 is new and unused, you can buy 11155 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 11155.
