| Manufacturer Part Number: | 11146A |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Toggle Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

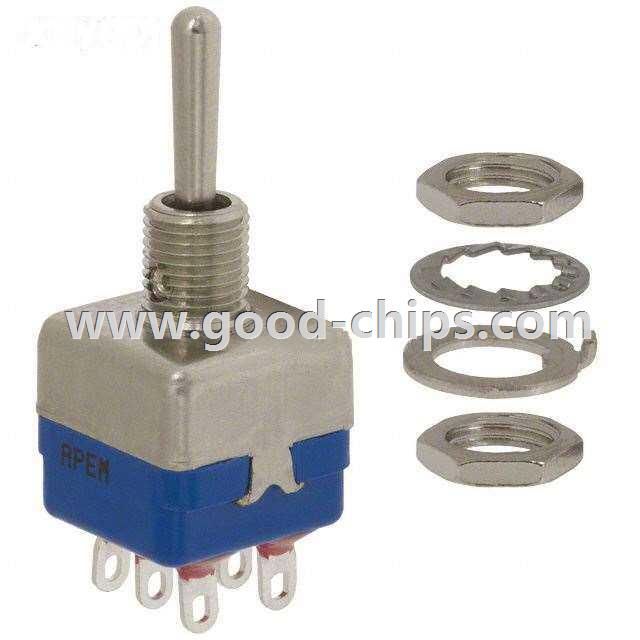

| Description: | Toggle Switch DPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 11146A Datasheet |
| Internal Part Number | 898-11146A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Apem Inc. | |
| Series | 11000 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 4A (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Standard Round | |
| Actuator Length | 11.30mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | |
| Bushing Thread | 1/4-40 | |
| Ingress Protection | - | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Brass, Chrome Plated | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 11146A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
11146A is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of 11146A is new and unused, you can buy 11146A Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 11146A.
