11123001502

11123001502
Manufacturer Part Number:11123001502
Manufacturer:
Product Category:Heavy Duty Connectors - Housings, Hoods, Bases
Available Quantity:9089 Pieces
Unit Price:Quote by Email

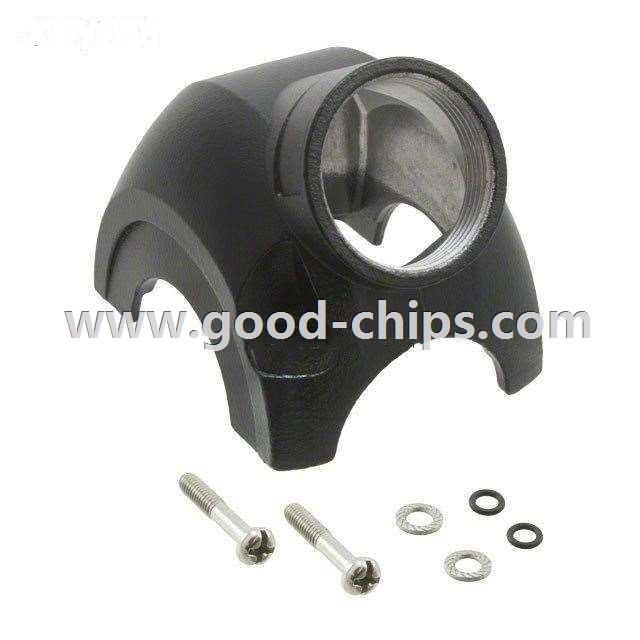

Description:CONN HOOD SHELL SIDE ENTRY M32
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 11123001502 Datasheet
11123001502´s Parameters
Internal Part Number898-11123001502
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Video FileHARTING Han-Yellock®
Featured ProductHan-Yellock
3D Model11123001502.jt
11123001502.stp
Online Catalog Han-Yellock® Series
CategoryConnectors, Interconnects
FamilyHeavy Duty Connectors - Housings, Hoods, Bases
ManufacturerHarting
SeriesHan-Yellock® 30
PackagingBulk
Part StatusActive
Connector TypeHood - Shell
StyleSide Entry
Size-
Lock LocationPush Button Snap Lock on Hood Carrier
Thread SizeM32
Size / Dimension2.862" L x 2.205" W x 2.496" H (72.70mm x 56.00mm x 63.40mm)
Housing ColorGray
Features-
Ingress ProtectionIP65/67 - Dust Tight, Water Resistant, Waterproof
Housing MaterialAluminum, Die Cast
Housing FinishEpoxy Powder Paint
Operating Temperature-40°C ~ 125°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part11123001502
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

11123001502 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 11123001502 is new and unused, you can buy 11123001502 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 11123001502.
