Manufacturer Part Number: | 11123001400 |
---|---|
Manufacturer: | Harting |
Product Category: | Heavy Duty Connectors - Housings, Hoods, Bases |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |

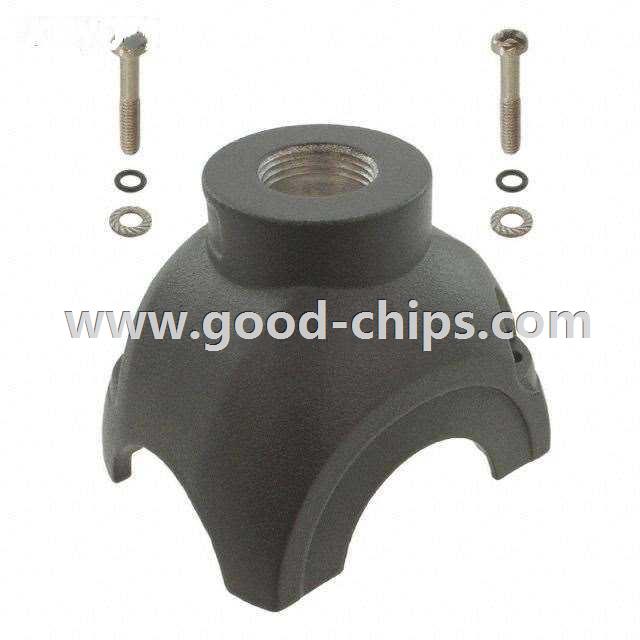

Description: | CONN HOOD SHELL TOP ENTRY M20 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 11123001400 Datasheet |
Internal Part Number | 898-11123001400 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | HARTING Han-Yellock® | |
Featured Product | Han-Yellock | |
3D Model | 11123001400.jt 11123001400.stp | |
Online Catalog | Han-Yellock® Series | |
Category | Connectors, Interconnects | |
Family | Heavy Duty Connectors - Housings, Hoods, Bases | |
Manufacturer | Harting | |
Series | Han-Yellock® 30 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Hood - Shell | |
Style | Top Entry | |
Size | - | |
Lock Location | Push Button Snap Lock on Hood Carrier | |
Thread Size | M20 | |
Size / Dimension | 2.862" L x 2.205" W x 2.370" H (72.70mm x 56.00mm x 60.20mm) | |
Housing Color | Gray | |
Features | - | |
Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof | |
Housing Material | Aluminum, Die Cast | |
Housing Finish | Epoxy Powder Paint | |
Operating Temperature | -40°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 11123001400 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
11123001400 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 11123001400 is new and unused, you can buy 11123001400 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 11123001400.
