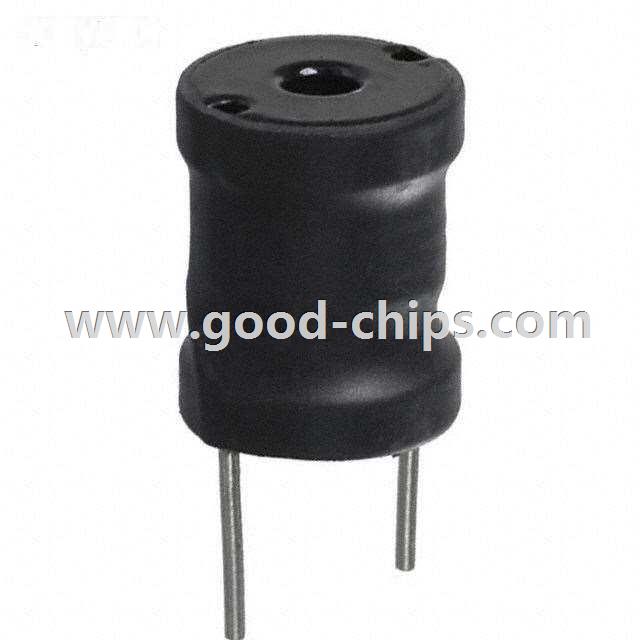

Manufacturer Part Number: | 1110-470K-RC |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9378 Pieces |
Unit Price: | Quote by Email |
Description: | 47µH Unshielded Wirewound Inductor 2.8A 62 mOhm Max Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1110-470K-RC Datasheet |
Internal Part Number | 898-1110-470K-RC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Magnetic Product Overview | |
3D Model | 1110-470K-RC.stp | |
PCN Design/Specification | 1110 Series Multiple Changes May/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 1110, 1120, 1130 and 1140 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | 1110 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 47µH | |
Tolerance | ±10% | |
Current Rating | 2.8A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 62 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 105°C | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.660" Dia (16.76mm) | |
Height - Seated (Max) | 0.840" (21.34mm) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1110-470K-RC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1110-470K-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 1110-470K-RC is new and unused, you can buy 1110-470K-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1110-470K-RC.
