| Manufacturer Part Number: | 1109814 |
|---|---|
| Manufacturer: | Aries Electronics |
| Product Category: | Sockets for ICs, Transistors - Adapters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

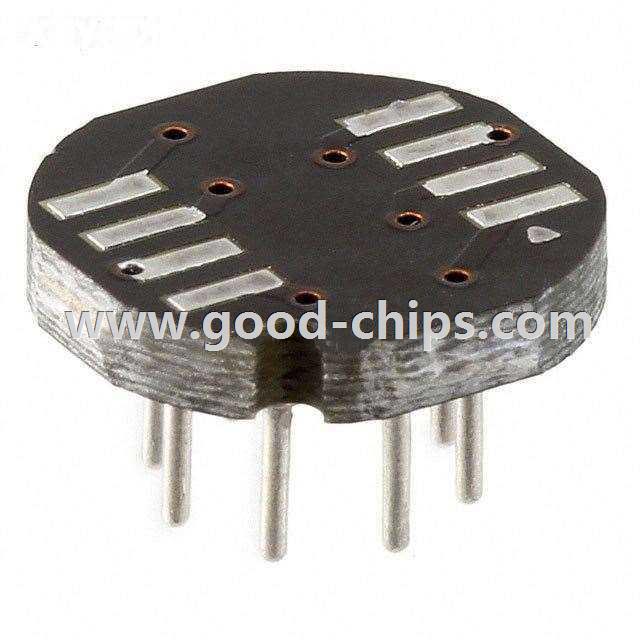

| Description: | IC Socket Adapter SOIC To JEDEC Through Hole |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1109814 Datasheet |
| Internal Part Number | 898-1109814 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Custom Correct-A-Chip® Adapters | |
| Featured Product | Correct-A-Chip® Adapters | |
| Online Catalog | 1109814 Series | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors - Adapters | |
| Manufacturer | Aries Electronics | |
| Series | Correct-A-Chip® 1109814 | |
| Part Status | Active | |
| Convert From (Adapter End) | SOIC | |
| Convert To (Adapter End) | JEDEC | |
| Number of Pins | 8 | |
| Pitch - Mating | 0.050" (1.27mm) | |
| Contact Finish - Mating | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Pitch - Post | - | |
| Contact Finish - Post | Tin-Lead | |
| Housing Material | - | |
| Board Material | FR4 Epoxy Glass | |
| Termination Post Length | 0.125" (3.18mm) | |
| Material Flammability Rating | - | |
| Features | - | |
| Current Rating | - | |
| Operating Temperature | - | |
| Contact Material - Mating | - | |
| Contact Material - Post | Brass | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish Thickness - Post | 200µin (5.08µm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1109814 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1109814 is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of 1109814 is new and unused, you can buy 1109814 Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1109814.
