Manufacturer Part Number: | 1106396-28 |
---|---|
Manufacturer: | Aries Electronics |
Product Category: | Sockets for ICs, Transistors - Adapters |
Available Quantity: | 9794 Pieces |
Unit Price: | Quote by Email |

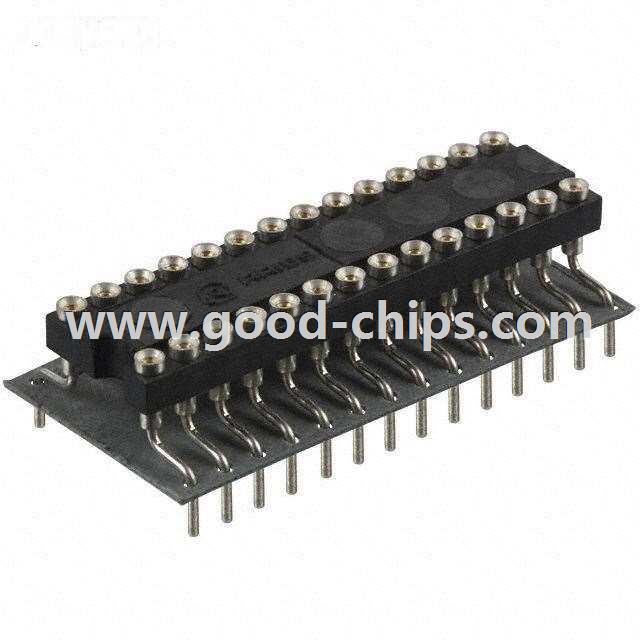

Description: | IC Socket Adapter DIP, 0.3" (7.62mm) Row Spacing To DIP, 0.6" (15.24mm) Row Spacing Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1106396-28 Datasheet |
Internal Part Number | 898-1106396-28 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Custom Correct-A-Chip® Adapters | |
Featured Product | Correct-A-Chip® Adapters | |
Online Catalog | 1106396 and 1107254 | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors - Adapters | |
Manufacturer | Aries Electronics | |
Series | Correct-A-Chip® 1106396 | |
Part Status | Active | |
Convert From (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing | |
Convert To (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing | |
Number of Pins | 28 | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Mounting Type | Through Hole | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Tin | |
Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
Board Material | - | |
Termination Post Length | 0.130" (3.30mm) | |
Material Flammability Rating | UL94 V-0 | |
Features | - | |
Current Rating | 3A | |
Operating Temperature | - | |
Contact Material - Mating | Beryllium Copper | |
Contact Material - Post | Brass | |
Contact Finish Thickness - Mating | 30µin (0.76µm) | |
Contact Finish Thickness - Post | 200µin (5.08µm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1106396-28 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1106396-28 is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of 1106396-28 is new and unused, you can buy 1106396-28 Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1106396-28.
