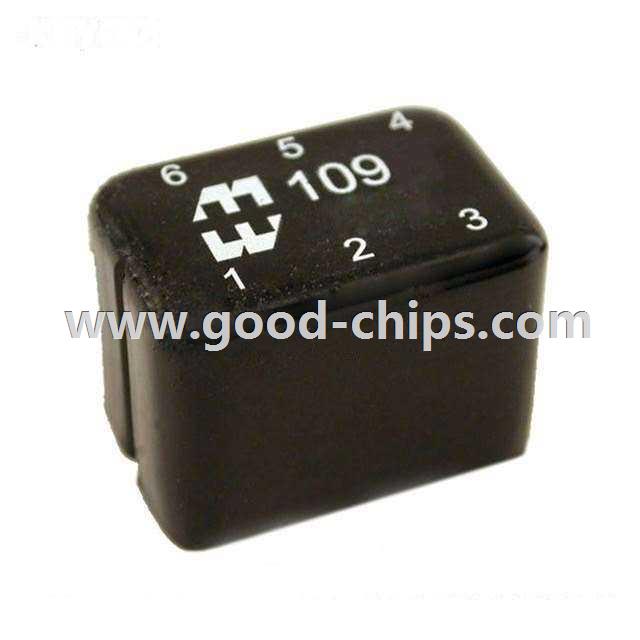

| Manufacturer Part Number: | 109E |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Audio Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSFORMER AUDIO 600CT/3.2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 109E Datasheet |
| Internal Part Number | 898-109E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Audio Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | 109 | |
| Part Status | Active | |
| Transformer Type | Miniature Epoxy Potted | |
| Current | - | |
| Impedance | 600CT Primary, 3.2 Secondary | |
| Insertion Loss | 1.5dB Typ. | |
| Mounting Type | Through Hole | |
| Size / Dimension | 33.53mm L x 23.62mm W | |
| Height - Seated (Max) | 23.37mm | |
| Termination Style | PC Pin | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 109E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
109E is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 109E is new and unused, you can buy 109E Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 109E.
