Manufacturer Part Number: | 109998-HMC526LC4 |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | RF Evaluation and Development Kits, Boards |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

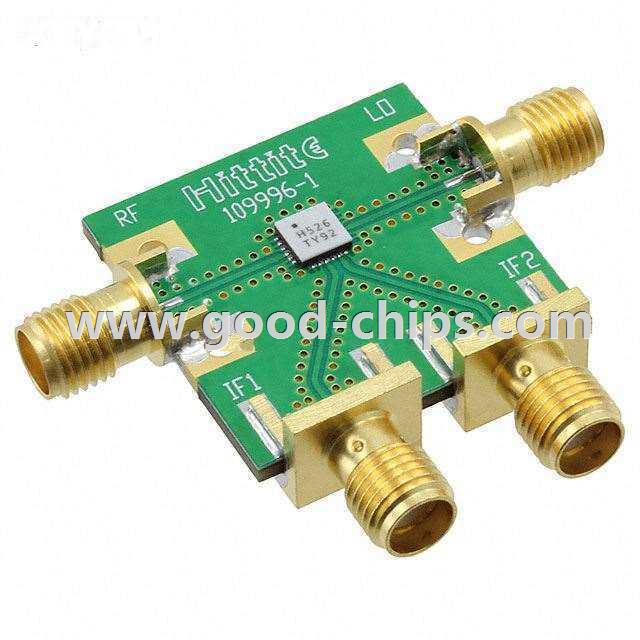

Description: | EVAL BOARD HMC526LC4 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 109998-HMC526LC4 Datasheet |
Internal Part Number | 898-109998-HMC526LC4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | 2 to 18 GHz 100Watt Solid State High Power Amplifier | |
Design Resources | Development Tool Selector IoT Product Selector | |
Online Catalog | HMC526LC4 Evaluation Board | |
Category | RF/IF and RFID | |
Family | RF Evaluation and Development Kits, Boards | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Part Status | Active | |
Type | Mixer | |
Frequency | 6GHz ~ 10GHz | |
For Use With/Related Products | HMC526LC4 | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 109998-HMC526LC4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
109998-HMC526LC4 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of 109998-HMC526LC4 is new and unused, you can buy 109998-HMC526LC4 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 109998-HMC526LC4.
