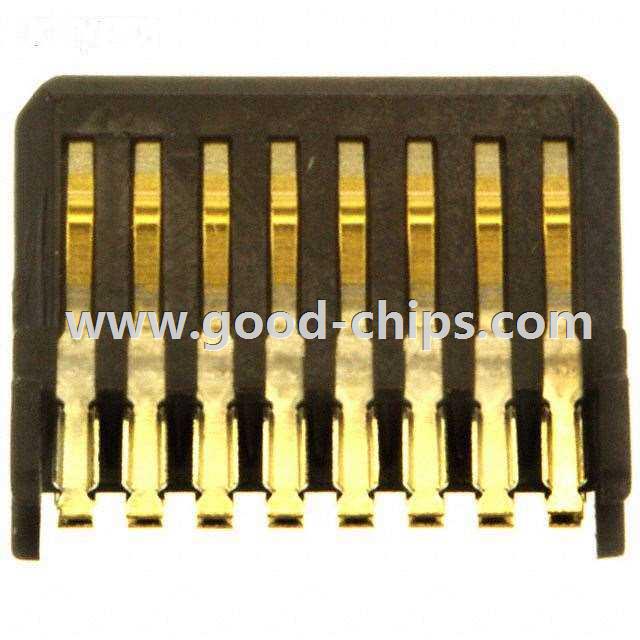

| Manufacturer Part Number: | 109257016001003 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 14216 Pieces |
| Unit Price: | Quote by Email |
| Description: | 16 Position Rectangular Plug Connector Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 109257016001003 Datasheet |
| Internal Part Number | 898-109257016001003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AVX - 9257 Series | |
| Online Catalog | 9257 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | AVX Corporation | |
| Series | 9257 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Contact Type | Non-Gender Specific | |
| Number of Positions | 16 | |
| Pitch | 0.049" (1.25mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | - | |
| Cable Termination | Solder Cup | |
| Wire Type | Discrete | |
| Wire Gauge | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 31.5µin (0.80µm) | |
| Color | Black | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 109257016001003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
109257016001003 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 109257016001003 is new and unused, you can buy 109257016001003 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 109257016001003.
