| Manufacturer Part Number: | 109159006101116 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

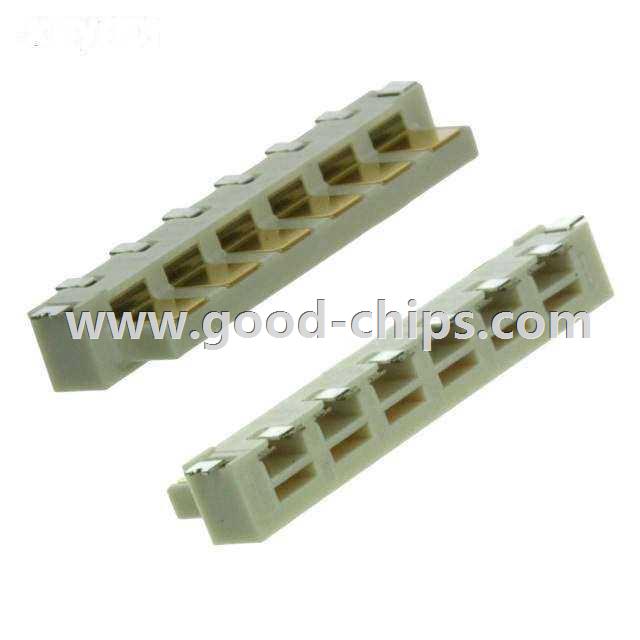

| Description: | SSL Connector 6 Position Plug Board to Board 0.118" (3.00mm) Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 109159006101116 Datasheet |
| Internal Part Number | 898-109159006101116 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Lighting | |
| Design Resources | Lighting Product Selector | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | AVX Corporation | |
| Series | 9159 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Board | |
| Connector Type | Plug | |
| Number of Positions | 6 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Pitch | 0.118" (3.00mm) | |
| Fastening Type | - | |
| Features | Solder Retention | |
| Housing Color | White | |
| Wire Gauge | - | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Polyamide (PA46), Nylon 4/6 | |
| Operating Temperature | -40°C ~ 125°C | |
| Voltage Rating | 125V | |
| Current Rating | 5A per Contact | |
| Ingress Protection | - | |
| Mating Cycles | 10 | |
| Standard Package | 1,400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 109159006101116 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
109159006101116 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 109159006101116 is new and unused, you can buy 109159006101116 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 109159006101116.
