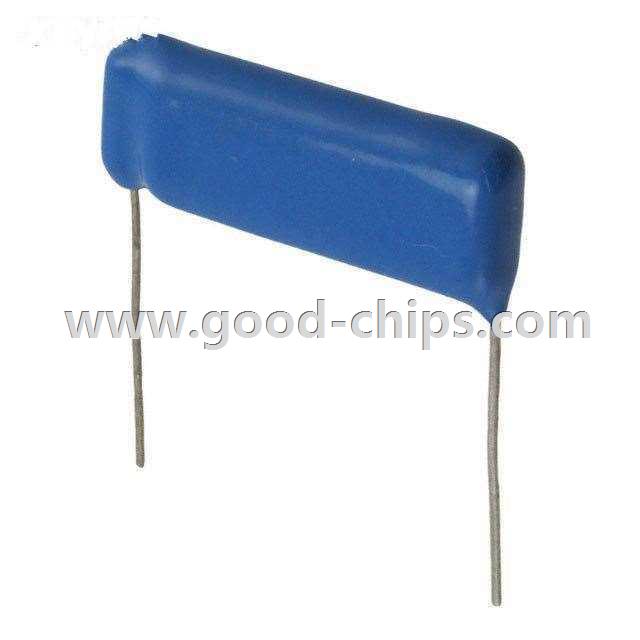

Manufacturer Part Number: | 105M02QB47 |
---|---|
Manufacturer: | Cornell Dubilier Electronics (CDE) |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9257 Pieces |
Unit Price: | Quote by Email |
Description: | RC EMI Filter 1st Order Low Pass 1 Channel R = 47 Ohms, C = 1.0µF Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 105M02QB47 Datasheet |
Internal Part Number | 898-105M02QB47 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Quencharc® Arc Suppressor/Snubber Network | |
Online Catalog | Quencharc® Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | Cornell Dubilier Electronics (CDE) | |
Series | Quencharc® | |
Packaging | Bulk | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 1st | |
Technology | RC | |
Number of Channels | 1 | |
Center / Cutoff Frequency | - | |
Attenuation Value | - | |
Resistance - Channel (Ohms) | 47 | |
Current | - | |
Values | R = 47 Ohms, C = 1.0µF | |
ESD Protection | No | |
Operating Temperature | -55°C ~ 85°C | |
Applications | General Purpose | |
Voltage - Rated | 200V | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 1.449" L x 0.390" W (36.80mm x 9.90mm) | |
Height | 0.911" (23.15mm) | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 105M02QB47 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
105M02QB47 is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of 105M02QB47 is new and unused, you can buy 105M02QB47 Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 105M02QB47.
