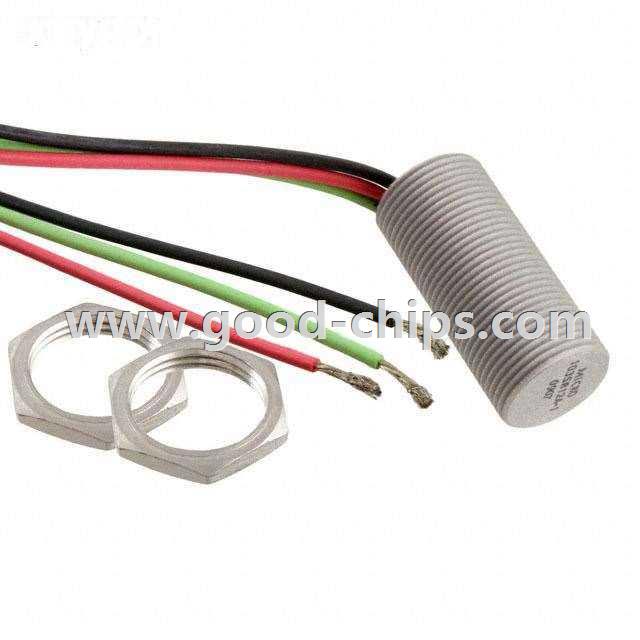

| Manufacturer Part Number: | 103SR13A-3 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |
| Description: | Magnetic Hall Effect Switch Magnet Digital, Open Collector Wire Leads Cylinder, Threaded |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 103SR13A-3 Datasheet |
| Internal Part Number | 898-103SR13A-3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Sensors | |
| Online Catalog | 103SR Digital Hall Effect Position Sensor | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | 103SR | |
| Part Status | Active | |
| Output Type | Digital, Open Collector | |
| Type | Hall Effect Switch | |
| Actuator Material | Magnet | |
| Termination Style | Wire Leads | |
| Frequency | - | |
| Voltage - Supply | 4.5 V ~ 24 V | |
| Must Operate | 49.5mT | |
| Must Release | 20mT | |
| Operating Temperature | -40°C ~ 100°C (TA) | |
| Package / Case | Cylinder, Threaded | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 103SR13A-3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
103SR13A-3 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 103SR13A-3 is new and unused, you can buy 103SR13A-3 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 103SR13A-3.
