| Manufacturer Part Number: | 10336-C500-00 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | D-Sub, D-Shaped Connectors - Backshells, Hoods |
| Available Quantity: | 9069 Pieces |
| Unit Price: | Quote by Email |

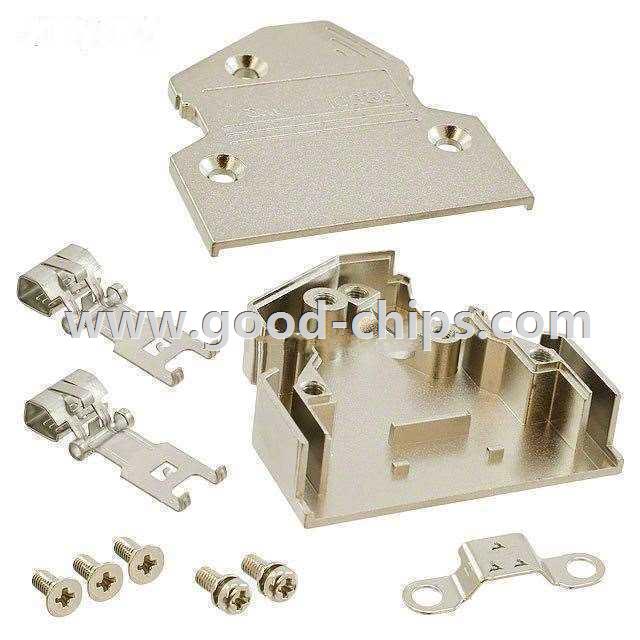

| Description: | 36 Position Two Piece Backshell Connector Silver 60° Shielded |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10336-C500-00 Datasheet |
| Internal Part Number | 898-10336-C500-00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Two and Four Position Link Connectors | |
| 3D Model | 10336-A500-00.x_t 10336-A500-00.stp 10336-A500-00.igs | |
| Online Catalog | 103 and 103, Mini D Ribbon (MDR) Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub, D-Shaped Connectors - Backshells, Hoods | |
| Manufacturer | 3M | |
| Series | 103, Mini D Ribbon (MDR) | |
| Part Status | Active | |
| Accessory Type | Two Piece Backshell | |
| Number of Positions | 36 | |
| Cable Type | Round | |
| Cable Exit | 60° | |
| Shielding | Shielded | |
| Material | Zinc Alloy | |
| Plating | Nickel | |
| Hardware | Assembly Hardware, Cable Clamp | |
| Features | Latch Lock | |
| Color | Silver | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10336-C500-00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10336-C500-00 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 10336-C500-00 is new and unused, you can buy 10336-C500-00 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10336-C500-00.
