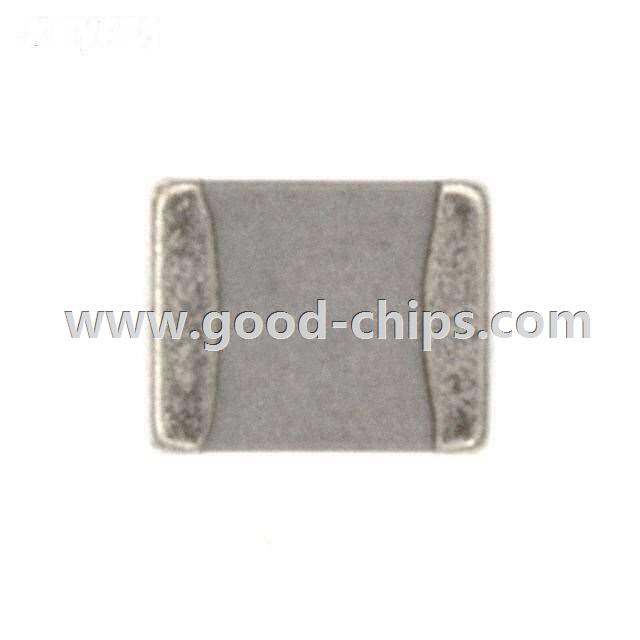

| Manufacturer Part Number: | 102S41N681KV4E |
|---|---|
| Manufacturer: | Johanson Dielectrics Inc. |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680pF 1000V (1kV) Ceramic Capacitor C0G, NP0 1210 (3225 Metric) 0.125" L x 0.095" W (3.18mm x 2.41mm) |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 102S41N681KV4E Datasheet |
| Internal Part Number | 898-102S41N681KV4E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MLCC Basics High Voltage PCB Design for Arc Prevention | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | Johanson Dielectrics Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Capacitance | 680pF | |
| Tolerance | ±10% | |
| Voltage - Rated | 1000V (1kV) | |
| Temperature Coefficient | C0G, NP0 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.125" L x 0.095" W (3.18mm x 2.41mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.080" (2.03mm) | |
| Lead Spacing | - | |
| Features | High Voltage | |
| Lead Style | - | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 102S41N681KV4E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
102S41N681KV4E is in stock for immediate shipping now. We are the distributor of Johanson Dielectrics Inc. all series components. The condition of 102S41N681KV4E is new and unused, you can buy 102S41N681KV4E Johanson Dielectrics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 102S41N681KV4E.
