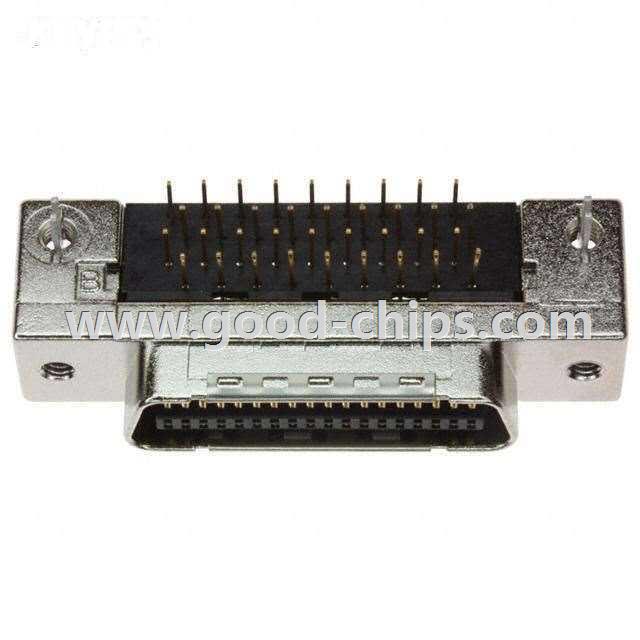

| Manufacturer Part Number: | 10136-52B2PC |
|---|---|
| Manufacturer: | 3M |
| Product Category: | D-Shaped Connectors - Centronics |
| Available Quantity: | 9085 Pieces |
| Unit Price: | Quote by Email |
| Description: | 36 Position Plug Connector Panel Mount, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10136-52B2PC Datasheet |
| Internal Part Number | 898-10136-52B2PC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | MDR Selection Guide | |
| Product Training Modules | Input/Output Connector Systems Primer Mini Delta Ribbon Connector System | |
| Video File | MDR System | |
| Featured Product | MDR Connectors | |
| Online Catalog | 101, Mini D Ribbon (MDR) Series | |
| Category | Connectors, Interconnects | |
| Family | D-Shaped Connectors - Centronics | |
| Manufacturer | 3M | |
| Series | 101, Mini D Ribbon (MDR) | |
| Part Status | Active | |
| Connector Style | Center Strip Contacts | |
| Connector Type | Plug | |
| Number of Positions | 36 | |
| Number of Rows | 2 | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Termination | Solder | |
| Flange Feature | Insert, Threaded (M2.5) | |
| Type | - | |
| Features | Board Lock, Shielded | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10136-52B2PC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10136-52B2PC is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 10136-52B2PC is new and unused, you can buy 10136-52B2PC 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10136-52B2PC.
