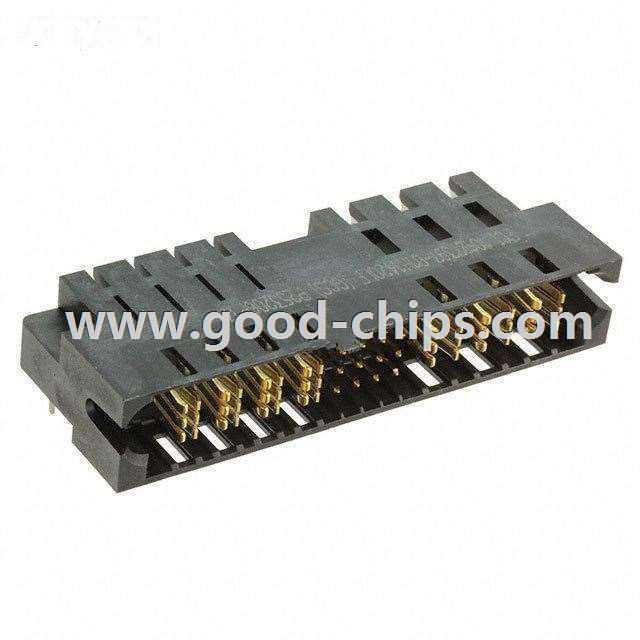

Manufacturer Part Number: | 10127397-01H1420LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9116 Pieces |
Unit Price: | Quote by Email |
Description: | CONN HEADER |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10127397-01H1420LF Datasheet |
Internal Part Number | 898-10127397-01H1420LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Pwr Blade ULTRA® Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | Amphenol FCI | |
Series | Pwr Blade ULTRA® | |
Packaging | Tray | |
Part Status | Active | |
Connector Usage | - | |
Connector Type | Header, Male Pins and Blades | |
Connector Style | Blade Power | |
Number of Positions | 22 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | - | |
Number of Columns | - | |
Mounting Type | Board Edge, Through Hole, Right Angle | |
Termination | Solder | |
Contact Layout, Typical | 12 Signal, 10 Power | |
Features | Board Guide, Mating Guide | |
Contact Finish | Gold or Gold, GXT™ | |
Contact Finish Thickness | - | |
Color | Black | |
Current Rating | - | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -40°C ~ 125°C | |
Voltage Rating | - | |
Standard Package | 48 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10127397-01H1420LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10127397-01H1420LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10127397-01H1420LF is new and unused, you can buy 10127397-01H1420LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10127397-01H1420LF.
