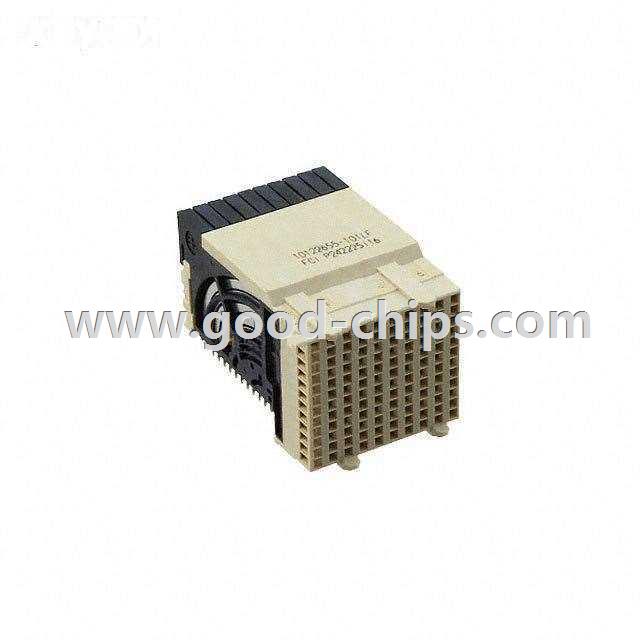

| Manufacturer Part Number: | 10122655-101LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9124 Pieces |
| Unit Price: | Quote by Email |
| Description: | AIRMAX VS2 4PAIR 10IMLA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10122655-101LF Datasheet |
| Internal Part Number | 898-10122655-101LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AirMax VS VS2 VSe Connectors | |
| PCN Design/Specification | AirMax VSE/VS2 23/Apr/2014 AirMax VS2/Vse Design 24/Nov/2014 | |
| PCN Packaging | AirMAX 3,4,5Packaging02/Dec/2014 AirMAX 3,4,5 Packaging 03/Dec/2014 | |
| Online Catalog | Airmax VS2™ Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Amphenol FCI | |
| Series | Airmax VS2™ | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Usage | Daughtercard | |
| Connector Type | Receptacle, Female Sockets | |
| Connector Style | High Speed | |
| Number of Positions | 120 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | - | |
| Number of Columns | 10 | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Layout, Typical | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Natural | |
| Current Rating | 0.5A per Contact | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 85°C | |
| Voltage Rating | 50 VAC | |
| Standard Package | 29 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10122655-101LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10122655-101LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10122655-101LF is new and unused, you can buy 10122655-101LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10122655-101LF.
