| Manufacturer Part Number: | 10120960-101LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Pluggable Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

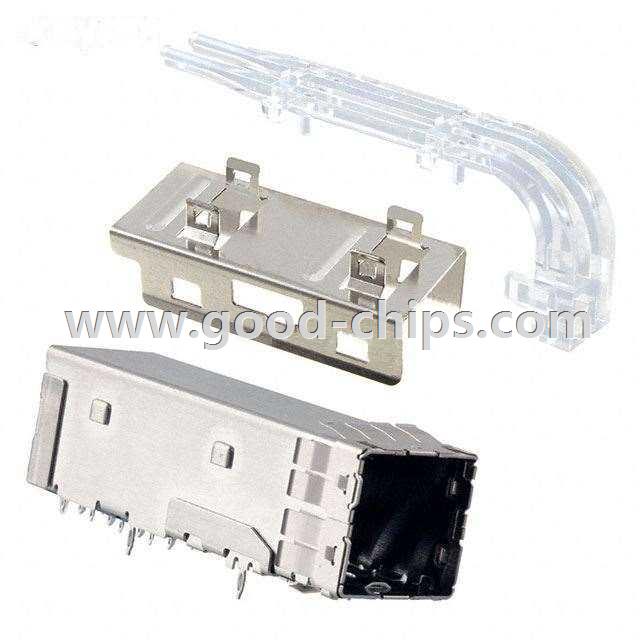

| Description: | MINI-SAS HD 1X1 EXT PCB LT PIPE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10120960-101LF Datasheet |
| Internal Part Number | 898-10120960-101LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mini SAS HD Latch Shape 17/Jul/2015 NewCheck List for Changing EMI Strap 20/Aug/2015 | |
| PCN Assembly/Origin | Mini SAS HD 17/Aug/2015 | |
| Online Catalog | Mini-SAS HD | |
| Category | Connectors, Interconnects | |
| Family | Pluggable Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | Receptacle with Cage | |
| Connector Type | SAS, Mini HD | |
| Number of Positions | 16 | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Features | EMI Shielded, Light Pipe | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 70 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10120960-101LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10120960-101LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10120960-101LF is new and unused, you can buy 10120960-101LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10120960-101LF.
