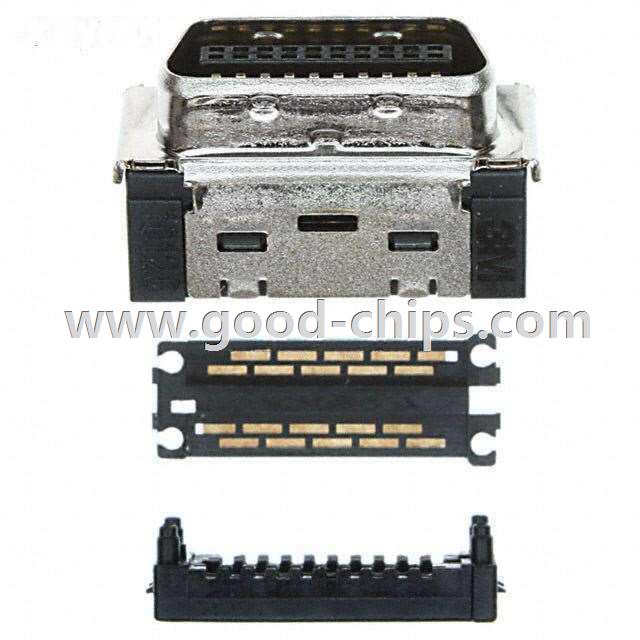

Manufacturer Part Number: | 10120-6000EC |
---|---|
Manufacturer: | 3M |
Product Category: | D-Shaped Connectors - Centronics |
Available Quantity: | 9109 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Position Plug Connector Free Hanging (In-Line) IDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10120-6000EC Datasheet |
Internal Part Number | 898-10120-6000EC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | MDR Selection Guide | |
Product Training Modules | Input/Output Connector Systems Primer Mini Delta Ribbon Connector System | |
Video File | MDR System | |
Featured Product | MDR Connectors | |
3D Model | 10120-6000EC.stp 10120-6000EC.igs 10120-6000EC.x_t | |
Online Catalog | 101, Mini D Ribbon (MDR) Series | |
Category | Connectors, Interconnects | |
Family | D-Shaped Connectors - Centronics | |
Manufacturer | 3M | |
Series | 101, Mini D Ribbon (MDR) | |
Part Status | Active | |
Connector Style | Center Strip Contacts | |
Connector Type | Plug | |
Number of Positions | 20 | |
Number of Rows | 2 | |
Mounting Type | Free Hanging (In-Line) | |
Termination | IDC | |
Flange Feature | - | |
Type | - | |
Features | Shielded | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10120-6000EC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10120-6000EC is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 10120-6000EC is new and unused, you can buy 10120-6000EC 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10120-6000EC.
