| Manufacturer Part Number: | 10118077-513B010LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Modular Connectors - Jacks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

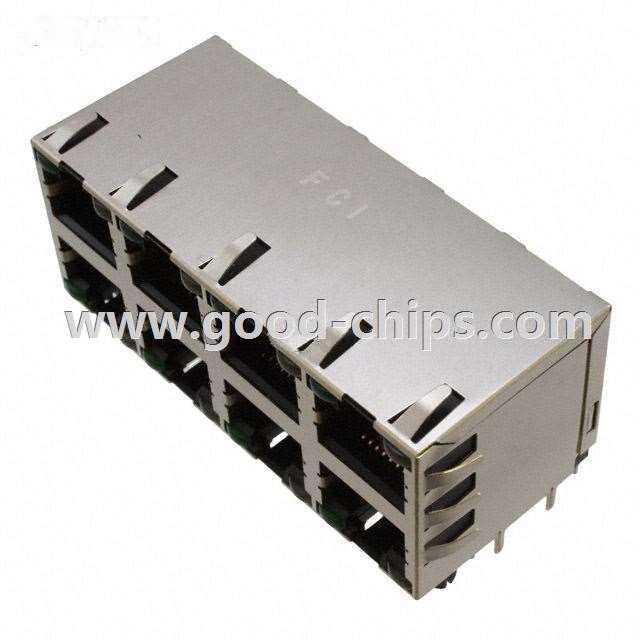

| Description: | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10118077-513B010LF Datasheet |
| Internal Part Number | 898-10118077-513B010LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices19/Jan/2015 | |
| PCN Design/Specification | Modular Jacks Documentation 10/Feb/2012 | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks | |
| Manufacturer | Amphenol FCI | |
| Series | 10118077 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 8 | |
| Number of Rows | 2 | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Shielding | Shielded, EMI Finger | |
| Ratings | Cat3 | |
| Features | Board Lock | |
| LED Color | Green - Yellow | |
| Ingress Protection | - | |
| Tab Direction | Up and Down | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Housing Material | Thermoplastic | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10118077-513B010LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10118077-513B010LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10118077-513B010LF is new and unused, you can buy 10118077-513B010LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10118077-513B010LF.
