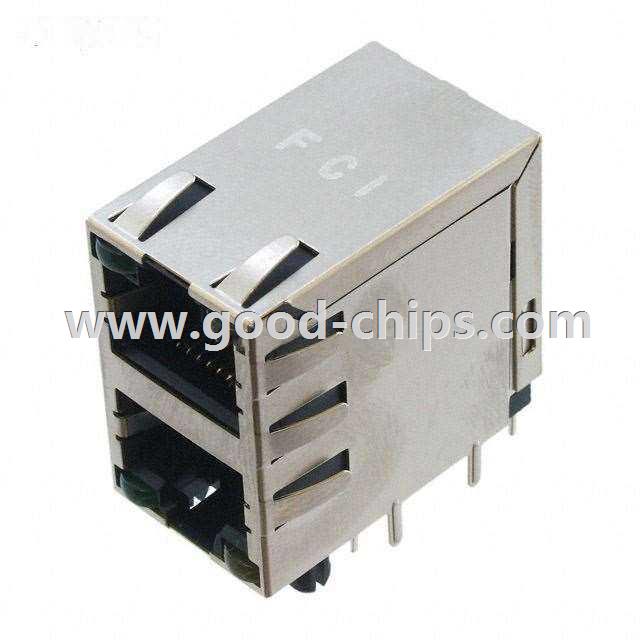

10118075-513B010LF

10118075-513B010LF
Manufacturer Part Number:10118075-513B010LF
Manufacturer:
Product Category:Modular Connectors - Jacks
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat3
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 10118075-513B010LF Datasheet
10118075-513B010LF´s Parameters
Internal Part Number898-10118075-513B010LF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Obsolescence/ EOLMultiple Devices19/Jan/2015
PCN Design/SpecificationModular Jacks Documentation 10/Feb/2012
CategoryConnectors, Interconnects
FamilyModular Connectors - Jacks
ManufacturerAmphenol FCI
Series10118075
PackagingTray
Part StatusObsolete
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Ports2
Number of Rows2
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
ShieldingShielded, EMI Finger
RatingsCat3
FeaturesBoard Lock
LED ColorGreen - Yellow
Ingress Protection-
Tab DirectionUp and Down
Contact MaterialCopper Alloy
Contact FinishGold
Contact Finish ThicknessFlash
Housing MaterialThermoplastic
Operating Temperature-40°C ~ 85°C
Standard Package 80
Weight0.001 KG
ApplicationEmail for details
Replacement Part10118075-513B010LF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

10118075-513B010LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10118075-513B010LF is new and unused, you can buy 10118075-513B010LF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 10118075-513B010LF.
