Manufacturer Part Number: | 10118070-500A110LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Modular Connectors - Jacks |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

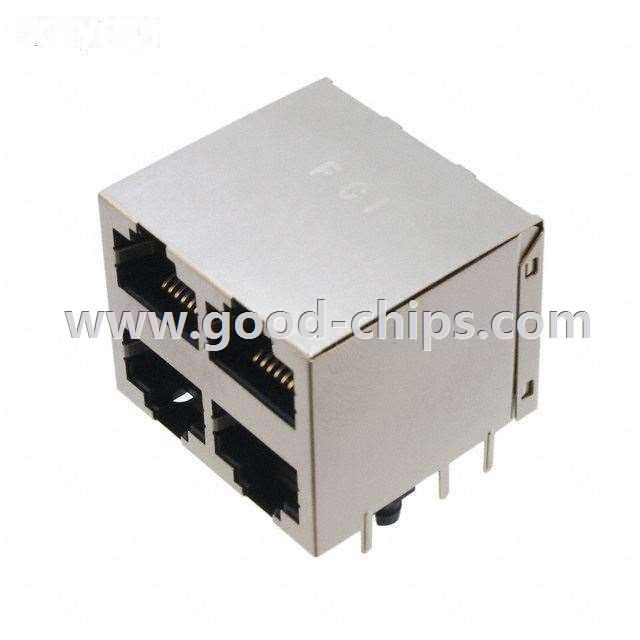

Description: | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10118070-500A110LF Datasheet |
Internal Part Number | 898-10118070-500A110LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices19/Jan/2015 | |
PCN Design/Specification | Modular Jacks Documentation 10/Feb/2012 | |
Category | Connectors, Interconnects | |
Family | Modular Connectors - Jacks | |
Manufacturer | Amphenol FCI | |
Series | 10118070 | |
Packaging | Tray | |
Part Status | Obsolete | |
Connector Type | Jack | |
Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
Number of Ports | 4 | |
Number of Rows | 2 | |
Mounting Type | Through Hole | |
Orientation | 90° Angle (Right) | |
Termination | Solder | |
Shielding | Shielded | |
Ratings | Cat3 | |
Features | Board Lock | |
LED Color | Does Not Contain LED | |
Ingress Protection | - | |
Tab Direction | Up and Down | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Housing Material | Thermoplastic | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 35 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10118070-500A110LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10118070-500A110LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10118070-500A110LF is new and unused, you can buy 10118070-500A110LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10118070-500A110LF.
