Manufacturer Part Number: | 10112630-101LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Pluggable Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

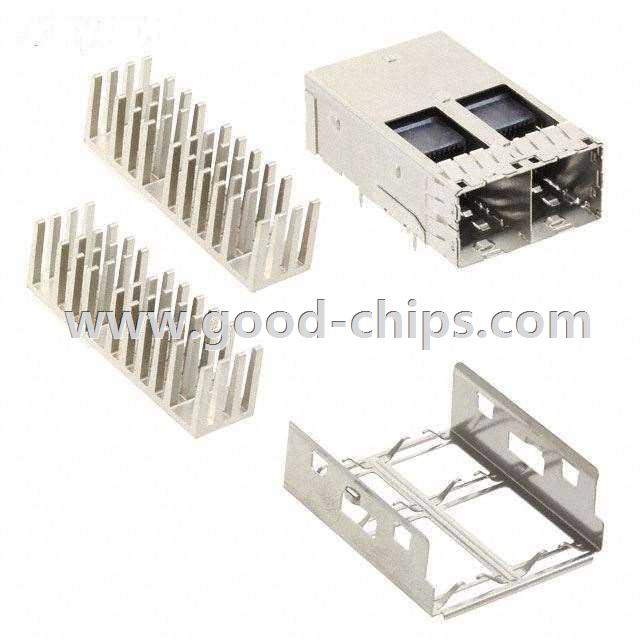

Description: | MINI-SAS HD 1X2 EXT PCB HT SINK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10112630-101LF Datasheet |
Internal Part Number | 898-10112630-101LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Mini SAS HD Latch Shape 17/Jul/2015 NewCheck List for Changing EMI Strap 20/Aug/2015 | |
PCN Assembly/Origin | Mini SAS HD 17/Aug/2015 | |
Online Catalog | Mini-SAS HD | |
Category | Connectors, Interconnects | |
Family | Pluggable Connectors | |
Manufacturer | Amphenol FCI | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | Receptacle with Cage, Ganged (1x2) with Heat Sink | |
Connector Type | SAS, Mini HD | |
Number of Positions | 32 (16 x 2) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Press-Fit | |
Features | EMI Shielded | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Standard Package | 35 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10112630-101LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10112630-101LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10112630-101LF is new and unused, you can buy 10112630-101LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10112630-101LF.
