Manufacturer Part Number: | 10106813-071112LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 17010 Pieces |
Unit Price: | Quote by Email |

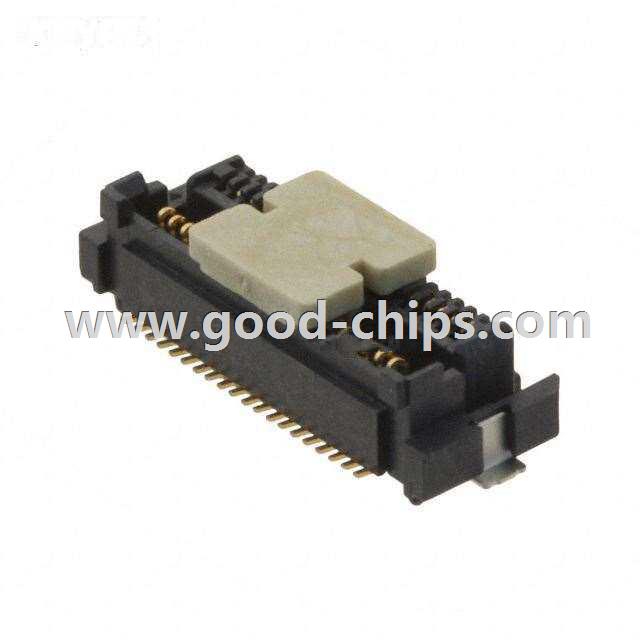

Description: | 70 Position Connector Self Mating, Non-Gendered Surface Mount Gold or Gold, GXT™ |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10106813-071112LF Datasheet |
Internal Part Number | 898-10106813-071112LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Product launch: MezzoStak...FCI's new 0.50mm Hermaphroditic Mezzanine Connector | |
Featured Product | MezzoStak 0.5 MM Mezzanine Connectors | |
PCN Assembly/Origin | BTB Series 0.5mm 27/Sept/2012 Multiple Devices 18/Aug/2015 Multiple Devices 18/Aug/2015 | |
Online Catalog | MezzoStak; 10106813 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Amphenol FCI | |
Series | MezzoStak | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Type | Self Mating, Non-Gendered | |
Number of Positions | 70 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide, Solder Retention | |
Contact Finish | Gold or Gold, GXT™ | |
Contact Finish Thickness | 15µin (0.38µm) | |
Mated Stacking Heights | 4mm, 4.5mm, 5.5mm | |
Height Above Board | 0.140" (3.55mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10106813-071112LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10106813-071112LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10106813-071112LF is new and unused, you can buy 10106813-071112LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10106813-071112LF.
