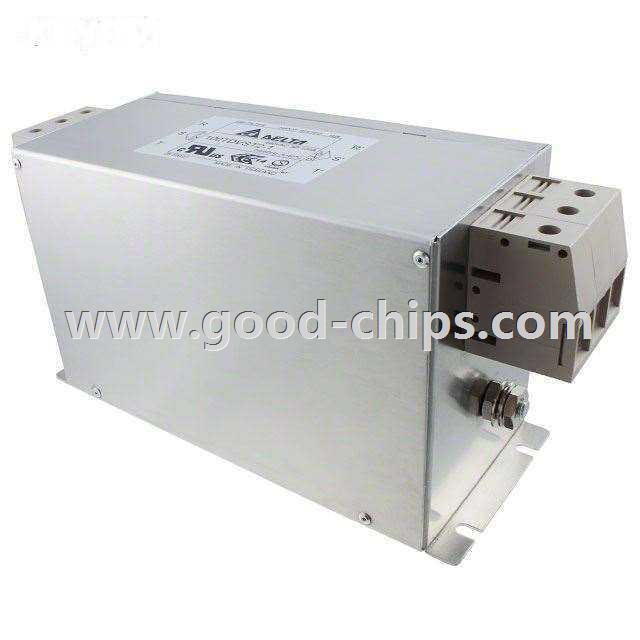

| Manufacturer Part Number: | 100TDVST2-1 |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | Power Line Filter Modules |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | EMI FILTER 100A 480VAC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 100TDVST2-1 Datasheet |
| Internal Part Number | 898-100TDVST2-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI Filter Products | |
| Featured Product | TDV Series EMI Filters | |
| Online Catalog | TDV Series | |
| Category | Filters | |
| Family | Power Line Filter Modules | |
| Manufacturer | Delta Electronics | |
| Series | TDV | |
| Part Status | Active | |
| Filter Type | Three Phase (Delta) | |
| Configuration | Two Stage | |
| Voltage - Rated DC | - | |
| Voltage - Rated AC | 480V | |
| Voltage - Rated AC (Phase to Ground/Neutral) | - | |
| Voltage - Rated AC (Phase to Phase) | - | |
| Current | 100A | |
| Frequency - Operating | 50/60Hz | |
| Applications | General Purpose | |
| Approvals | cURus, ENEC, SEMKO | |
| Operating Temperature | -25°C ~ 100°C | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Inductance | L1 - 900µH, L2 - 8µH | |
| Standard Package | 3 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 100TDVST2-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
100TDVST2-1 is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of 100TDVST2-1 is new and unused, you can buy 100TDVST2-1 Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 100TDVST2-1.
