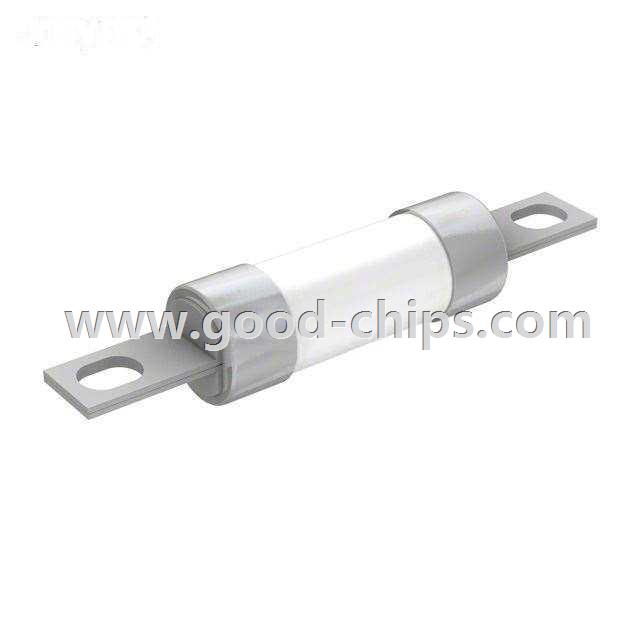

| Manufacturer Part Number: | 100L09C |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Electrical, Specialty Fuses |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE CRTRDGE 100A 600VAC/250VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 100L09C Datasheet |
| Internal Part Number | 898-100L09C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Circuit Protection | |
| Family | Electrical, Specialty Fuses | |
| Manufacturer | Eaton | |
| Series | HRC II | |
| Packaging | Bulk | |
| Part Status | Active | |
| Fuse Type | Cartridge | |
| Current Rating | 100A | |
| Voltage Rating - AC | 600V | |
| Voltage Rating - DC | 250V | |
| Response Time | - | |
| Applications | Electrical, Industrial | |
| Features | - | |
| Class | - | |
| Approvals | CE, CSA | |
| Operating Temperature | - | |
| Breaking Capacity @ Rated Voltage | 200kA | |
| Mounting Type | Bolt Mount | |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | |
| Size / Dimension | 0.843" Dia x 2.362" L (21.40mm x 60.00mm) | |
| Melting I²t | - | |
| DC Cold Resistance | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 100L09C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
100L09C is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of 100L09C is new and unused, you can buy 100L09C Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 100L09C.
