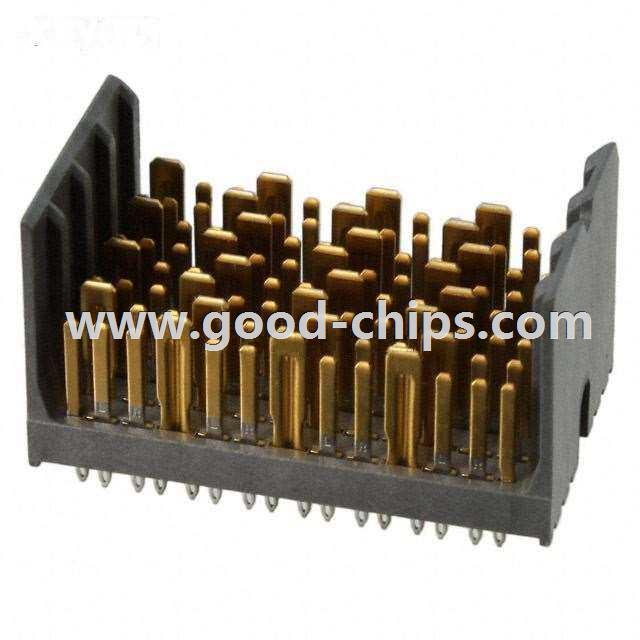

| Manufacturer Part Number: | 10091777-00E-20DLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9155 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN HEADER 4PR 8COL VERT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10091777-00E-20DLF Datasheet |
| Internal Part Number | 898-10091777-00E-20DLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Series Plating 02/Jul/2015 Multiple Series Plating Cancelled 09/Feb/2016 XCede Vertical HeadersDimension 11/Apr/2016 | |
| PCN Assembly/Origin | Multiple Devices Location Change 23/Feb/2015 | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Amphenol FCI | |
| Series | XCede® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | Backplane | |
| Connector Type | Header, Male Pins and Blades | |
| Connector Style | XCede® | |
| Number of Positions | - | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | - | |
| Number of Columns | 8 | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 32 Signal Pairs, 36 Ground | |
| Features | - | |
| Contact Finish | Gold or Gold, GXT™ | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | - | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Standard Package | 72 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10091777-00E-20DLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10091777-00E-20DLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10091777-00E-20DLF is new and unused, you can buy 10091777-00E-20DLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10091777-00E-20DLF.
