10090929-S154XLF

10090929-S154XLF
Manufacturer Part Number:10090929-S154XLF
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:10017 Pieces
Unit Price:Quote by Email

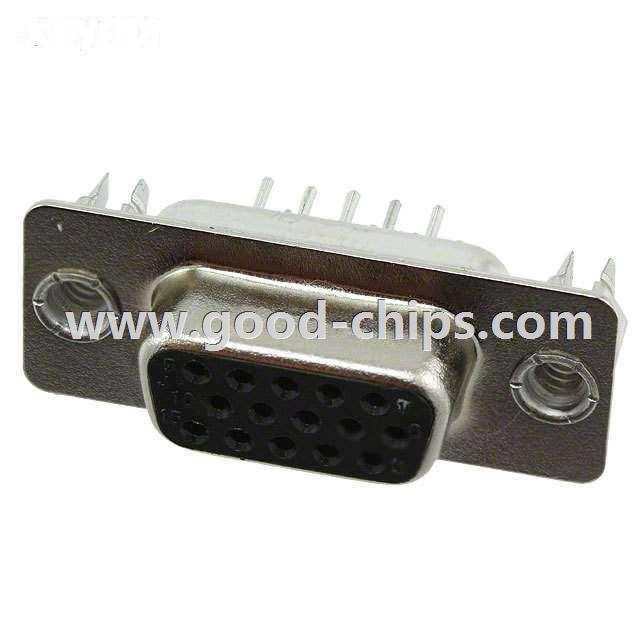

Description:15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Through Hole Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 10090929-S154XLF Datasheet
10090929-S154XLF´s Parameters
Internal Part Number898-10090929-S154XLF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductD-Subminiature Connectors High Density
3D Model10090929-S15.stp
Online Catalog 10090769, 10090770, 10090926, 10090928 and 10090929 Series
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerAmphenol FCI
Series10090929
PackagingTray
Part StatusActive
Connector StyleD-Sub, High Density
Connector TypeReceptacle, Female Sockets
Number of Positions15
Number of Rows3
Shell Size, Connector Layout1 (DE, E) High Density
Contact TypeSignal
Mounting TypeThrough Hole
Flange FeatureBoard Side (4-40)
TerminationSolder
FeaturesBoard Lock
Shell Material, FinishSteel, Nickel Plated
Contact FinishGold
Contact Finish ThicknessFlash
Ingress Protection-
Operating Temperature-55°C ~ 105°C
Voltage Rating250V
Current Rating2.5A
Housing MaterialThermoplastic, Glass Filled
ColorBlack
Standard Package 90
Weight0.001 KG
ApplicationEmail for details
Replacement Part10090929-S154XLF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

10090929-S154XLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10090929-S154XLF is new and unused, you can buy 10090929-S154XLF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 10090929-S154XLF.
