| Manufacturer Part Number: | 10090770-S264ALF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 11087 Pieces |
| Unit Price: | Quote by Email |

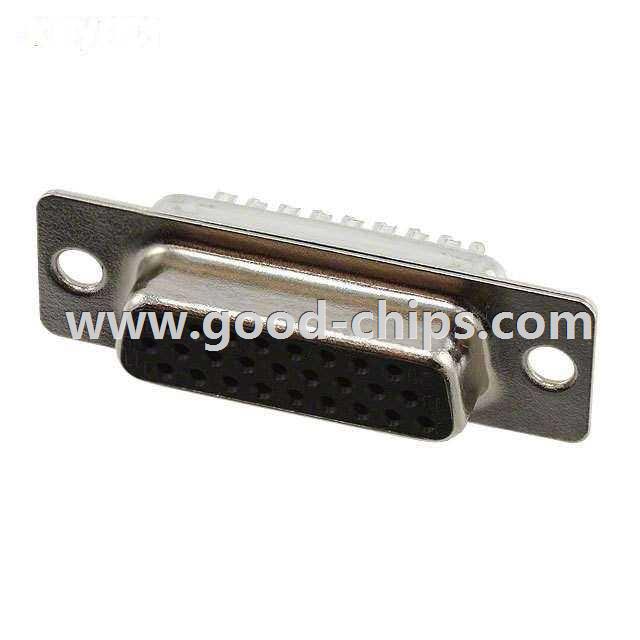

| Description: | 26 Position D-Sub, High Density Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10090770-S264ALF Datasheet |
| Internal Part Number | 898-10090770-S264ALF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | D-Subminiature Connectors High Density | |
| 3D Model | 10090770-S26.stp | |
| Online Catalog | 10090769, 10090770, 10090926, 10090928 and 10090929 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | 10090770 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 26 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 2 (DA, A) High Density | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | - | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | 250V | |
| Current Rating | 2.5A | |
| Housing Material | Thermoplastic, Glass Filled | |
| Color | Black | |
| Standard Package | 70 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10090770-S264ALF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10090770-S264ALF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10090770-S264ALF is new and unused, you can buy 10090770-S264ALF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10090770-S264ALF.
