Manufacturer Part Number: | 10090770-S154ALF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | D-Sub Connectors |
Available Quantity: | 11195 Pieces |
Unit Price: | Quote by Email |

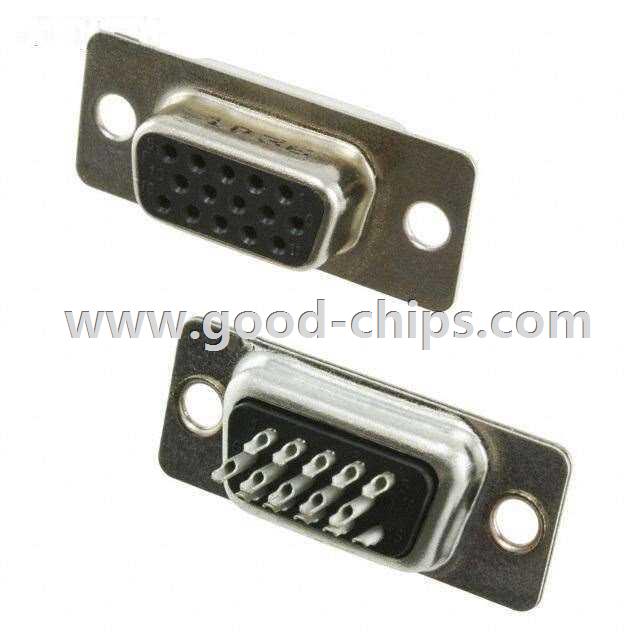

Description: | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10090770-S154ALF Datasheet |
Internal Part Number | 898-10090770-S154ALF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | D-Subminiature Connectors High Density | |
3D Model | 10090770-S15.stp | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol FCI | |
Series | 10090770 | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub, High Density | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 15 | |
Number of Rows | 3 | |
Shell Size, Connector Layout | 1 (DE, E) High Density | |
Contact Type | Signal | |
Mounting Type | Free Hanging (In-Line) | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | - | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | 250V | |
Current Rating | 2.5A | |
Housing Material | Thermoplastic, Glass Filled | |
Color | Black | |
Standard Package | 90 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10090770-S154ALF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10090770-S154ALF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10090770-S154ALF is new and unused, you can buy 10090770-S154ALF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10090770-S154ALF.
