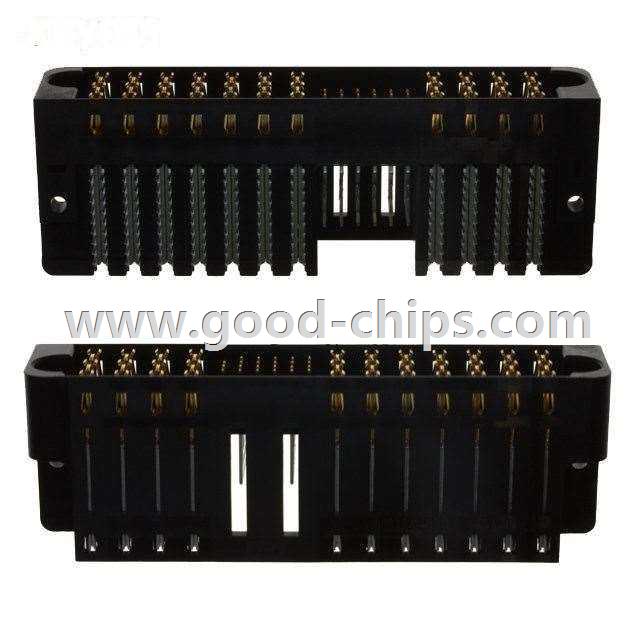

Manufacturer Part Number: | 10082722-001LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN HEADER 11PWR+24SGNL R/A SLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 10082722-001LF Datasheet |
Internal Part Number | 898-10082722-001LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Solutions | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | Amphenol FCI | |
Series | HCI® | |
Packaging | Tray | |
Part Status | Active | |
Connector Usage | - | |
Connector Type | Header, Male Pins and Blades | |
Connector Style | Blade Power | |
Number of Positions | 35 | |
Number of Positions Loaded | All | |
Pitch | - | |
Number of Rows | 4 | |
Number of Columns | - | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Contact Layout, Typical | 24 Signal, 11 Power | |
Features | Mating Guide | |
Contact Finish | - | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Current Rating | - | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -65°C ~ 105°C | |
Voltage Rating | - | |
Standard Package | 36 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 10082722-001LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
10082722-001LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10082722-001LF is new and unused, you can buy 10082722-001LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10082722-001LF.
