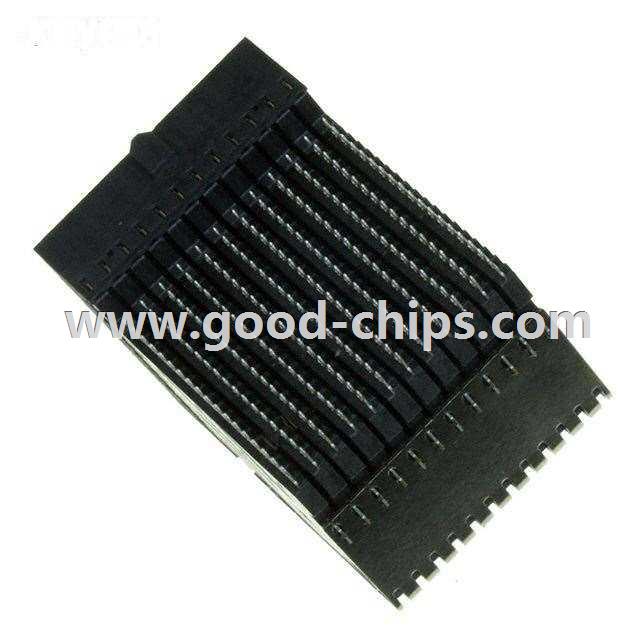

| Manufacturer Part Number: | 10076209-101LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN RCPT 6PR 12IMLA R/A 1.8MM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10076209-101LF Datasheet |
| Internal Part Number | 898-10076209-101LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ZipLine™ Connector System | |
| Featured Product | ZipLine™ High-Density, High-Performance Connector System | |
| PCN Assembly/Origin | Zipline/Location 04/Mar/2013 | |
| Online Catalog | ZipLine™ Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Amphenol FCI | |
| Series | ZipLine™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Usage | Backplane, Orthogonal | |
| Connector Type | Receptacle, Female Sockets | |
| Connector Style | High Density (HDC, HDI, HPC) | |
| Number of Positions | 216 | |
| Number of Positions Loaded | All | |
| Pitch | 0.071" (1.80mm) | |
| Number of Rows | 18 | |
| Number of Columns | 12 | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 72 Signal Pairs, 72 Ground | |
| Features | - | |
| Contact Finish | Gold or Gold, GXT™ | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10076209-101LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10076209-101LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10076209-101LF is new and unused, you can buy 10076209-101LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10076209-101LF.
