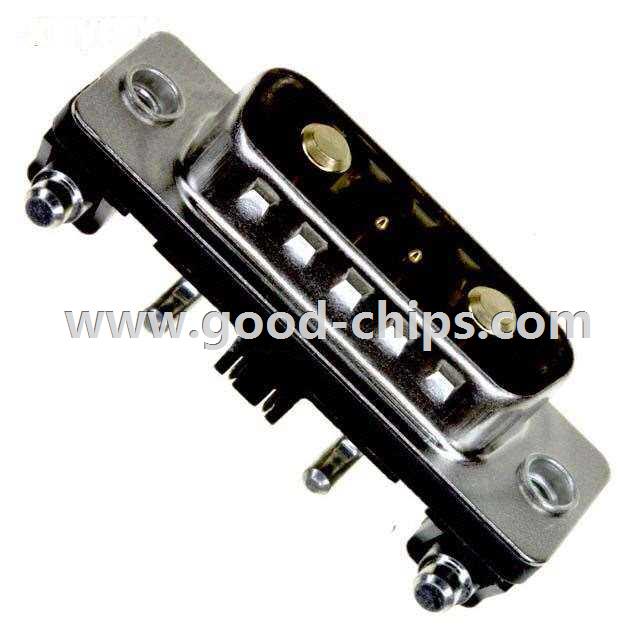

| Manufacturer Part Number: | 10070158-00419XLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9136 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 (2 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector, Board Cutout, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10070158-00419XLF Datasheet |
| Internal Part Number | 898-10070158-00419XLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Solutions D-Sub I/O Connectors | |
| 3D Model | 10070158-xx4xxx.igs 10070158-xx4xxx.prt 10070158-xx4xxx.stp | |
| Online Catalog | MicroTCA™ Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | MicroTCA™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 4 (2 + 2 Power) | |
| Number of Rows | 1 | |
| Shell Size, Connector Layout | 2 (DA, A) - 4W2 | |
| Contact Type | Signal and Power | |
| Mounting Type | Board Cutout, Through Hole, Right Angle | |
| Flange Feature | Insert, Threaded (4-40) | |
| Termination | Solder | |
| Features | Board Guide, Grounding Indents, Mounting Brackets | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | 48V | |
| Current Rating | 0.375A, 24A | |
| Housing Material | Thermoplastic | |
| Color | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10070158-00419XLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10070158-00419XLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10070158-00419XLF is new and unused, you can buy 10070158-00419XLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10070158-00419XLF.
