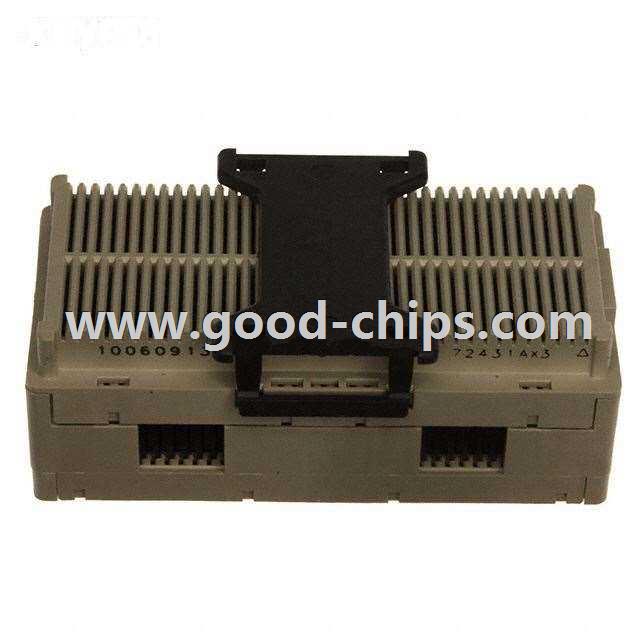

| Manufacturer Part Number: | 10060913-001LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 296 signal (148 pair) Position Connector Differential Pair Array, Female Surface Mount Gold or Gold, GXT™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10060913-001LF Datasheet |
| Internal Part Number | 898-10060913-001LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | GIG-Array® Mezzanine Connectors | |
| Video File | Mezzselect Tool - Another Geek Moment | |
| Featured Product | MezzSelect GIG Array Connector | |
| PCN Design/Specification | GIG-Array Plating 15/Mar/2011 GIG Array Marerial 15/Feb/2012 | |
| PCN Assembly/Origin | GIG-Array Connectors 15/Jan/2013 | |
| Online Catalog | GIG-Array®, MezzSelect™ | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Amphenol FCI | |
| Series | GIG-Array®, MezzSelect™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Differential Pair Array, Female | |
| Number of Positions | 296 signal (148 pair) | |
| Pitch | 0.051" (1.30mm) | |
| Number of Rows | 18 | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Contact Finish | Gold or Gold, GXT™ | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Mated Stacking Heights | 25mm, 27mm, 28mm, 30mm, 35mm, 40mm | |
| Height Above Board | 0.571" (14.51mm) | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10060913-001LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10060913-001LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10060913-001LF is new and unused, you can buy 10060913-001LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10060913-001LF.
