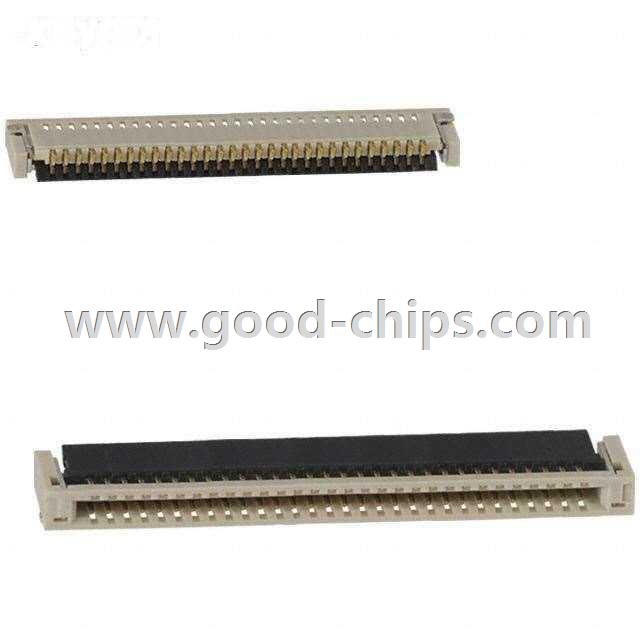

| Manufacturer Part Number: | 10051922-3010ELF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 30 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 10051922-3010ELF Datasheet |
| Internal Part Number | 898-10051922-3010ELF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Flat Flex Connector Overview | |
| Featured Product | FFC and FPC Connectors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | VLL Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | VLL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Bottom | |
| Number of Positions | 30 | |
| Pitch | 0.020" (0.50mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.051" (1.30mm) | |
| Locking Feature | Flip Lock, Backlock | |
| Cable End Type | Tapered | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -55°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.5A | |
| Standard Package | 4,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 10051922-3010ELF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
10051922-3010ELF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 10051922-3010ELF is new and unused, you can buy 10051922-3010ELF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 10051922-3010ELF.
